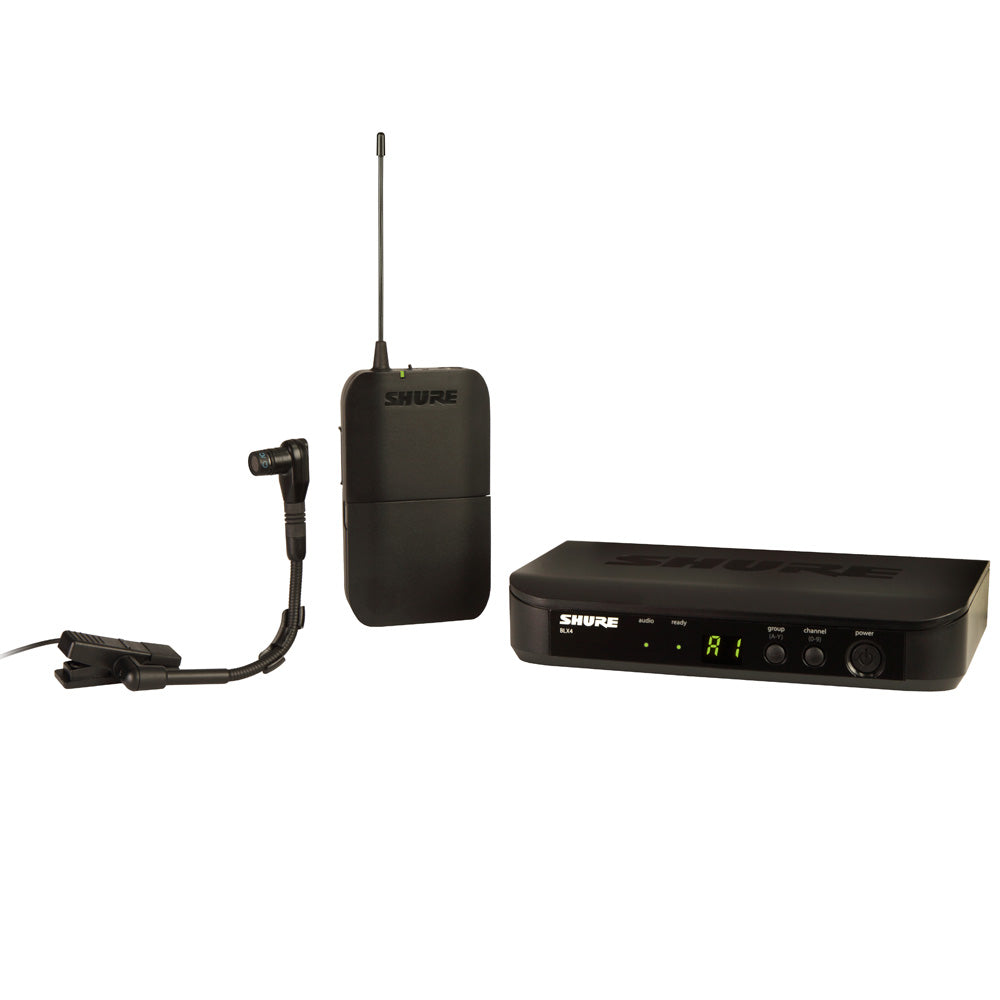

Shure BLX14UK/B98 Beta Wireless Instrument System with Beta98H/C Mic
Quantity:
The Beta 98H/C condenser microphone is a versatile solution for brass or percussion instruments. It offers a flexible integrated gooseneck with clip-on clamp for a secure fit and precise positioning. It combines simple setup and an intuitive interface for performance you can trust in.
SYSTEM TECHNICAL SPECIFICATIONS
FURTHER TECHNICAL SPECS
BLX4 RECEIVER
- XLR connector 200 O
- 6.35 mm (1/4") connector: 50 O
- XLR connector -27 dBV (into 100 kO load)
- 6.35 mm (1/4") connector -13 dBV (into 100 kO load)
BLX1 BODYPACK TRANSMITTER
- gain max: -16 dBV maximum
- gain min (0 dB): +10 dBV maximum
- A versatile solution for brass or percussion instruments
- Flexible integrated gooseneck with clip-on clamp
- Adjustable gain control
- Quick and easy frequencymatching
- Up to 14 hours of continuous use
- 100m operating range
BETA 98H/C CLIP-ON GOOSENECK MICROPHONE
The Beta 98 H/C feature transformerless preamplifier circuitry which improves linearity across the full frequency range.
The pickup pattern provides high gain-before-feedback and excellent rejection of unwanted noise.
Its high maximum sound pressure level (SPL) enables it to handle the extreme demands of brass, woodwind and percussion instruments.
The Beta 98H/C features a 3 m (10 ft.) high-flex cable with attached preamplifier (XLR connection)
Tailored frequency for open, natural sound reproduction
Compact, lightweight construction provides a low degree of visibility
Gooseneck, ratcheting swivel joint and gooseneck angle brace allow for optimum placement and fixed positioning
BLX1 BODYPACK TRANSMITTER
Power and battery status LED
Adjustable gain control
Quick and easy frequency matching
AA batteries (included) provide up to 14 hours of continuous use
100 m (300 ft.) operating range (line of sight)
RECEIVER BLX4
Up to 12 compatible systems (region dependent)
Microprocessor-controlled internal antenna diversity
One touch QuickScan locates the best open frequency
1/4" and XLR audio outputs
Two color audio status indicator LED
FURNISHED ACCESSORIES
Microphone, horn clamp (WB98H/C), part number: 98D426
Carrying case, part number: 95E16526
Power supply: PS23E
