Shure BLX14UK/P31 BLX Wireless Instrument/Mic System
Quantity:
The PG Wireless Combo System with PG58 and PGA31 combines simple setup and an intuitive interface for performance you can trust. The comfortable headset offers maximum freedom of movement when performing or presenting. The PG58 is the entry to Shure quality wireless vocal microphones.

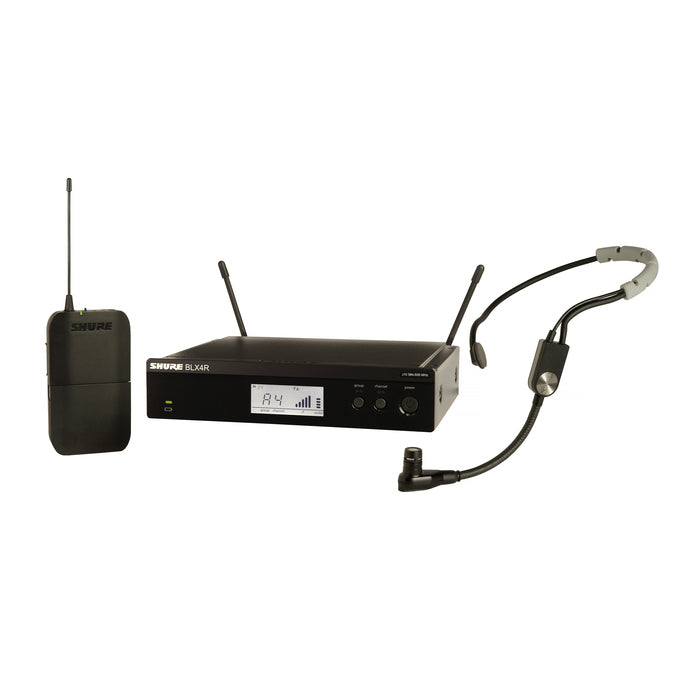

Includes BLX4 wireless receiver, BLX1 bodypack transmitter, PGA31 headset microphone, power supply, clothing clip, windscreens, and user guide.
SYSTEM TECHNICAL SPECIFICATIONS
- Compatible systems per frequency band (up to): 12
- Selectable frequencies: Up to 150
- Auto Setup Features: QuickScan : Finds group with most compatible frequencies and sets to best frequency
- Audio Reference Companding: No
- Included Antennas: BLX4, BLX88: Internal, BLX4R: Detachable
- Antenna Options: No
- Receiver Network Ability: No
- PC Control: No
- Rack Hardware: URT2 (not included), Rack mount brackets (only with rackable/BLX-R Sets)
- Case: No
- Transmitter Display: LED
- Receiver Display: BLX4, BLX88: LED, BLX4R: High-resolution LCD screen
- Battery, Endurance: 2AA, up to 14h
- Environment: Small to medium stages
FURTHER TECHNICAL SPECS
- Operating Range: 91 m ( line of sight - actual range depends on RF signal absorption, reflection and interference)
- Available Frequencies: Between 524–865 MHz (available frequencies depend on applicable regulations in country where system used)
- Audio Range: 50–15,000 Hz (dependent on microphone type)
- Transmitter RF Output Power: 10 mW, typical (varies by region)
- Audio Output Connector: XLR and 1/4" (6.3 mm) unbalanced Maximum Output Level: -27 dBV (XLR, mic level), -13 dBV (1/4")
- Battery Life: Up to 14 hours
- Dynamic Range: 100 dB A-weighted
- System Distortion: 0.5% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
- Operating Temperature Range: -18°C (0°F) – +50°C (122°F)
- Power Requirements: BLX1, BLX2: 2 AA alkaline or rechargeable batteries
- BLX88: 12–18 V DC at 320 mA, supplied by external power supply
COMPONENT SPECIFICATIONS:
BLX88 DUAL RECEIVER
- Output Impedance:
- - XLR connector: 200 Ω
- - 6.35 mm (1/4") connector: 50 Ω
- Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone:
- - XLR connector –27 dBV (into 100 kΩ load)
- - 6.35 mm (1/4") connector –13 dBV (into 100 kΩ load)
- RF Sensitivity: 105 dBm for 12 dB SINAD, typical
- Image Rejection: >50 dB, typical
- Dimensions: 40 mm X 388 mm X 116 mm (H x W x D)
- Weight: BLX88 429 g
- Housing: Molded ABS
- Power Requirements: 12–15 V DC @ 320 mA, supplied by external power supply (tip positive)
BLX2 HANDHELD TRANSMITTER
- Audio Input Level
- - gain 0dB: -20 dBV maximum
- - gain -10dB: -10 dBV maximum
- Gain Adjustment Range: 10 dB
- RF Transmitter Output: 10 mW, typical, varies by region
- Dimensions: 224 mm X 53 mm dia.
- Weight: 218 g (without batteries)
- Housing: Molded ABS
- Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
- Battery Life: up to 14 hours (alkaline)
BLX1 BODYPACK TRANSMITTER
- Audio Input Level:
- - gain max: -16 dBV maximum
- - gain min (0 dB): +10 dBV maximum
- Gain Adjustment Range: 26 dB
- Input Impedance: 1 MΩ
- RF Transmitter Output: 10 mW, typical, varies by region
- Dimensions: 110 mm x 64 mm x 21 mm (H x W x D)
- Weight: 75 g, without batteries
- Housing: Molded ABS
- Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
- Battery Life: up to 14 hours (alkaline)
- Up to 12 compatible systems per frequency band (region dependent)
- One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference
- Up to 14 hours of continuous use from 2 AA batteries (included)
- Up to 300 ft (91 m) operating range for total wireless freedom
- XLR and ¼" output connectors
- Rugged and reliable Shure construction
Components
BLX1 - Bodypack Transmitter
Up to 14 hours of continuous use with 2 AA batteries. 300 ft (100 m) transmission radius.
BLX4 - Single Channel Receiver
Single channel wireless receiver with microprocessor-controlled internal antenna diversity.
PGA31 - Headset Condenser Microphone
Affordable wireless cardioid condenser headset microphone for speech and vocal performance applications offers long-wearing comfort and reliability.
BLX1 - Bodypack Transmitter
Up to 14 hours of continuous use with 2 AA batteries. 300 ft (100 m) transmission radius.
BLX4 - Single Channel Receiver
Single channel wireless receiver with microprocessor-controlled internal antenna diversity.
PGA31 - Headset Condenser Microphone
Affordable wireless cardioid condenser headset microphone for speech and vocal performance applications offers long-wearing comfort and reliability.
