Shure BLX14UK-PG185 PG Wireless System for Guitarists + PG185 Lavalier Mic
Quantity:
The most accessible wireless Shure lavalier microphone for spoken word applications with analogue (BLX) wireless transmission

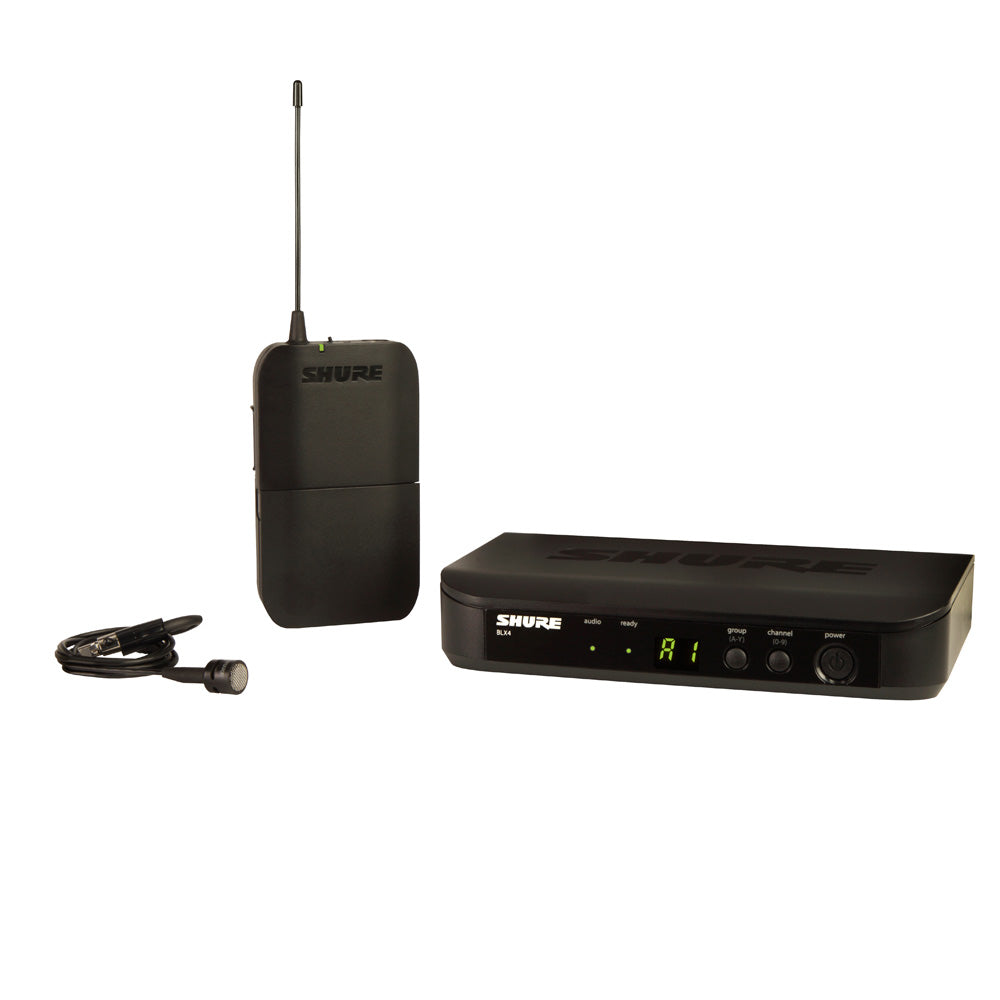

Includes BLX4 wireless receiver, BLX1 bodypack transmitter, CVL lavalier microphone, power supply, lavalier clip, windscreens, and user guide.
SYSTEM TECHNICAL SPECIFICATIONS
Compatible systems per frequency band (up to): 12
Selectable frequencies: Up to 150
Auto Setup Features: QuickScan : Finds group with most compatible frequencies and sets to best frequency
Audio Reference Companding: No
Included Antennas: BLX4, BLX88: Internal, BLX4R: Detachable
Antenna Options: No
Receiver Network Ability: No
PC Control: No
Rack Hardware: URT2 (not included), Rack mount brackets (only with rackable/BLX-R Sets)
Case: No
Transmitter Display: LED
Receiver Display: BLX4, BLX88: LED, BLX4R: High-resolution LCD screen
Battery, Endurance: 2AA, up to 14h
Environment: Small to medium stages
FURTHER TECHNICAL SPECS
Operating Range: 91 m ( line of sight - actual range depends on RF signal absorption, reflection and interference)
Available Frequencies: Between 524-865 MHz (available frequencies depend on applicable regulations in country where system used)
Audio Range: 50-15,000 Hz (dependent on microphone type)
Transmitter RF Output Power: 10 mW, typical (varies by region)
Audio Output Connector: XLR and 1/4" (6.3 mm) unbalanced Maximum Output Level: -27 dBV (XLR, mic level), -13 dBV (1/4")
Battery Life: Up to 14 hours
Dynamic Range: 100 dB A-weighted
System Distortion: 0.5% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
Operating Temperature Range: -18°C (0°F) - +50°C (122°F)
Power Requirements: BLX1, BLX2: 2 AA alkaline or rechargeable batteries
BLX4: 12-18 V DC at 150 mA, supplied by external power supply
BLX4 RECEIVER
Output Impedance:
- XLR connector 200 O
- 6.35 mm (1/4") connector: 50 O
Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone:
- XLR connector -27 dBV (into 100 kO load)
- 6.35 mm (1/4") connector -13 dBV (into 100 kO load)
RF Sensitivity: 105 dBm for 12 dB SINAD, typical
Image Rejection: >50 dB, typical
Dimensions: 40 mm X 188 mm X 103 mm (H x W x D)
Weight: 241 g
Housing: Molded ABS
Power Requirements: 12-15 V DC @ 160 mA, supplied by external power supply (tip positive)
BLX1 BODYPACK TRANSMITTER
Audio Input Level:
- gain max: -16 dBV maximum
- gain min (0 dB): +10 dBV maximum
Gain Adjustment Range: 26 dB
Input Impedance: 1 MO
RF Transmitter Output: 10 mW, typical, varies by region
Dimensions: 110 mm x 64 mm x 21 mm (H x W x D)
Weight: 75 g, without batteries
Housing: Molded ABS
Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
Battery Life: up to 14 hours (alkaline)
FURTHER TECHNICAL SPECS
BLX4 RECEIVER
- XLR connector 200 O
- 6.35 mm (1/4") connector: 50 O
- XLR connector -27 dBV (into 100 kO load)
- 6.35 mm (1/4") connector -13 dBV (into 100 kO load)
BLX1 BODYPACK TRANSMITTER
- gain max: -16 dBV maximum
- gain min (0 dB): +10 dBV maximum
- PG185 LAVALIER MICROPHONE
- BLX1 BODYPACK TRANSMITTER
- RECEIVER BLX4
- Reliable
- Ideal for spoken word applications
PG185 LAVALIER MICROPHONE
- Electret condenser microphone
- Cardioid polar pattern
- Clothing clip for secure placement
- Acoustic windscreen minimises wind noise in outdoor applications
BLX1 BODYPACK TRANSMITTER - Power and battery status LED
- Adjustable gain control
- Quick and easy frequency matching
- AA batteries (included) provide up to 14 hours of continuous use
- 100 m (300 ft.) operating range (line of sight)
RECEIVER BLX4 - Up to 12 compatible systems (region dependent)
- Microprocessor-controlled internal antenna diversity
- One touch QuickScan locates the best open frequency
- 1/4" and XLR audio outputs
- Two color audio status indicator LED
