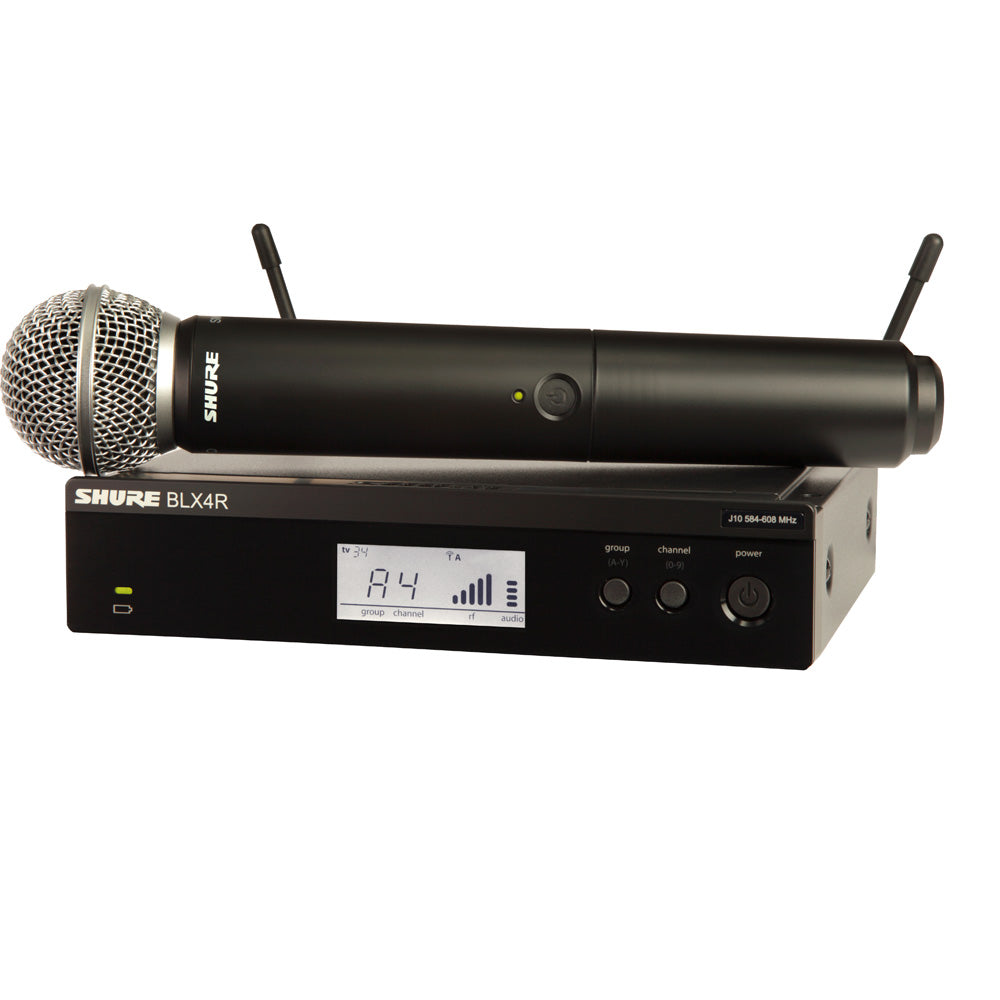

Shure BLX24RUK/SM58 Wireless Rack Mountable Vocal System
Quantity:
Industry standard microphone tailored to deliver warm and clear vocal reproduction. With rack-mountable receiver.The SM Wireless Vocal System with SM58, an industry-standard, highly versatile cardioid dynamic vocal microphone, tailored to deliver warm and clear vocal reproduction combines simple setup and an intuitive interface for performance you can trust in. With rack-mountable receiver.
System technical specifications
Compatible systems per frequency band (up to): 12
Selectable frequencies: Up to 150
Auto Setup Features: QuickScan : Finds group with most compatible frequencies and sets to best frequency
Audio Reference Companding: No
Included Antennas: BLX4, BLX88: Internal, BLX4R: Detachable
Antenna Options: No
Receiver Network Ability: No
PC Control: No
Rack Hardware: URT2 (not included), Rack mount brackets (only with rackable/BLX-R Sets)
Case: Included Only with BLX4 Sets
Transmitter Display: LED
Receiver Display: BLX4, BLX88: LED, BLX4R: High-resolution LCD screen
Battery, Endurance: 2AA, up to 14h
Environment: Demanding acoustic environments
Further Technical Specs
Operating Range: 91 m ( line of sight - actual range depends on RF signal absorption, reflection and interference)
Available Frequencies: Between 524-865 MHz (available frequencies depend on applicable regulations in country where system used)
Audio Range: 50-15,000 Hz (dependent on microphone type)
Transmitter RF Output Power: 10 mW, typical (varies by region)
Audio Output Connector: XLR and 1/4" (6.3 mm) unbalanced Maximum Output Level: -27 dBV (XLR, mic level), -13 dBV (1/4")
Battery Life: Up to 14 hours
Dynamic Range: 100 dB A-weighted
System Distortion: 0.5% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
Operating Temperature Range: -18°C (0°F) - +50°C (122°F)
Power Requirements: BLX1, BLX2: 2 AA alkaline or rechargeable batteries
BLX4R: 12-15 V DC @ 260 mA, supplied by external power supply (tip positive)
Component Specifications:
BLX4R Receiver
Output Impedance:
- XLR connector: 200 O
- 6.35 mm (1/4") connector: 50 O
Audio Output Level, Ref. ±33 kHz deviation with 1 kHz tone:
- XLR connector: -20.5 dBV (into 100 kO load)
- 6.35 mm (1/4") connector: -13 dBV (into 100 kO load)
RF Sensitivity: -105 dBm for 12 dB SINAD, typical
Image Rejection: >50 dB, typical
Dimensions: 50 mm X 198 mm X 163 mm H x W x D
Weight, without antennas: 998 g
Housing: Molded ABS, steel
Power Requirements: 12-15 V DC @ 260 mA, supplied by external power supply (tip positive)
BLX2 Handheld Transmitter
Audio Input Level:
- gain 0dB: -20 dBV maximum
- gain -10dB: -10 dBV maximum
Gain Adjustment Range: 10 dB
RF Transmitter Output: 10 mW, typical, varies by region
Dimensions: 224 mm X 53 mm dia.
Weight: 218 g (without batteries)
Housing: Molded ABS
Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
Battery Life: up to 14 hours (alkaline)
Further Technical Specs
Component Specifications:
BLX4R Receiver
- XLR connector: 200 O
- 6.35 mm (1/4") connector: 50 O
- XLR connector: -20.5 dBV (into 100 kO load)
- 6.35 mm (1/4") connector: -13 dBV (into 100 kO load)
BLX2 Handheld Transmitter
- gain 0dB: -20 dBV maximum
- gain -10dB: -10 dBV maximum
- SM58 Vocal Microphone|
- BLX2 Handheld Transmitter
- Receiver BLX4R
- Frequency response tailored for vocals
- Uniform cardioid pickup pattern
- Rack mount kit included
SM58 Vocal Microphone
- Frequency response tailored for vocals, with brightened midrange and bass rolloff
- Uniform cardioid pickup pattern isolates the main sound source and minimizes background noise
- Pneumatic shock-mount system cuts down handling noise
- Effective, built-in spherical wind and pop filter
- Supplied with break-resistant stand adapter which rotates 180 degrees
- Legendary Shure quality, ruggedness and reliability
- Cardioid (unidirectional) dynamic
- Frequency response: 50 to 15,000 Hz
BLX2 Handheld Transmitter
- Power and battery status LED
- Adjustable gain control
- Quick and easy frequency matching
- AA batteries (included) provide up to 14 hours of continuous use
- 100 m (300 ft.) operating range (line of sight)
Receiver BLX4R
- One-touch QuickScan frequency selection quickly locates the best open frequency (in case of interference)
- Up to 12 compatible systems per frequency band (region-dependent)
- XLR and ¼" output connectors
- Two-color audio status indicator LED
- Green: Normal audio levels
- Red: Excessive audio levels (overload/clipping) - Adjustable output level
- Removable antennas for quick antenna distribution
- LC Display with detailed RF and audio metering
- Rack mount kit included
Furnished Accessories
- RACK MOUNT BRACKET, part number: 53A8611
- LONG RACK MOUNT BRACKET, part number: 53A8612
- LINK BRACKET, part number: 53B8443
- HARDWARE KIT, part number: 90AZ8100
- Swivel adater, part number: 90F4046
- Thread adapter, part number: 31B1856
- 2x, ANTENNA/BNC,1/4 WAVE, part number: 95A8699
- 2x, ADAPTER,BULKHEAD,BNC, part number: 95A8994
- BAG VINYL, ZIPPERED, part number: 95B2313
- 2x, CABLE,BNC,22 in., part number: 95K2035
- Power supply PS23
