Shure BLX24UK/PG58 Wireless Analogue Vocal System

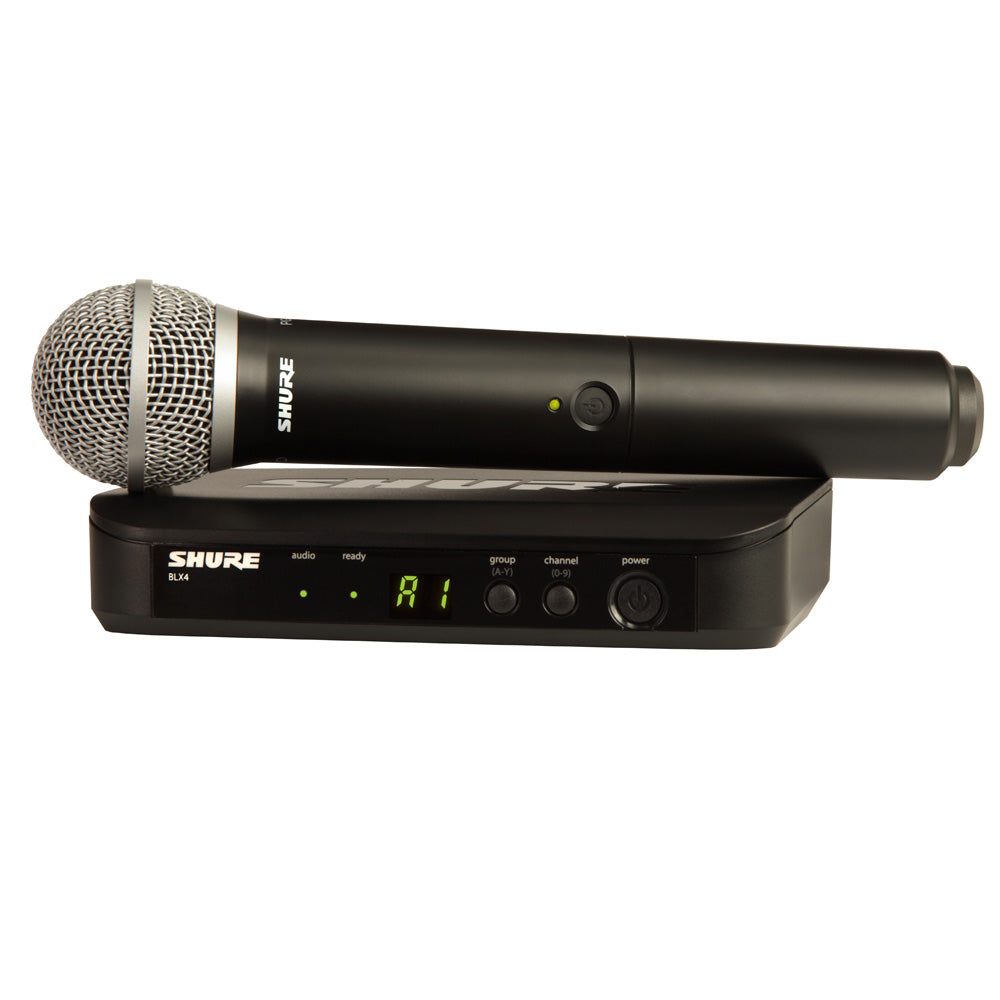

The BLX24/PG58 Handheld Wireless System is a simple and intuitive wireless system featuring a PG58 microphone capsule, BLX2 handheld transmitter and BLX4 receiver.
Dynamic vocal microphone with professional quality and analogue handheld transmitter. Integrated microphone capsule design
BLX2 Handheld Transmitter
Power and battery status LED, Adjustable gain control, Quick and easy frequencymatching, up to 14 hours of continuous use, 100 m operating range
Up to 12 compatible systems (region dependent), Microprocessor-controlled internal antennadiversity, One touch QuickScan locates the best open Frequency, ¼" and XLR audio outputs, Two color audio status indicator LED
(Includes BLX4 single-channel receiver, BLX2/PG58 handheld transmitter, microphone clip, power supply, 2 AA batteries, and user guide.)
System technical specifications
- Compatible systems per frequency band (up to): 12
- Selectable frequencies: Up to 150
- Auto Setup Features: QuickScan : Finds group with most compatible frequencies and sets to best frequency
- Audio Reference Companding: No
- Included Antennas: BLX4, BLX88: Internal, BLX4R: Detachable
- Antenna Options: No
- Receiver Network Ability: No
- PC Control: No
- Rack Hardware: URT2 (not included), Rack mount brackets (only with rackable/BLX-R Sets)
- Case: Included Only with BLX4 Sets
- Transmitter Display: LED
- Receiver Display: BLX4, BLX88: LED, BLX4R: High-resolution LCD screen
- Battery, Endurance: 2AA, up to 14h
- Environment: Demanding acoustic environments
Further Technical Specs
- Operating Range: 91 m ( line of sight - actual range depends on RF signal absorption, reflection and interference)
- Available Frequencies: Between 524-865 MHz (available frequencies depend on applicable regulations in country where system used)
- Audio Range: 50-15,000 Hz (dependent on microphone type)
- Transmitter RF Output Power: 10 mW, typical (varies by region)
- Audio Output Connector: XLR and 1/4" (6.3 mm) unbalanced Maximum Output Level: -27 dBV (XLR, mic level), -13 dBV (1/4")
- Battery Life: Up to 14 hours
- Dynamic Range: 100 dB A-weighted
- System Distortion: 0.5% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
- Operating Temperature Range: -18°C (0°F) - +50°C (122°F)
- Power Requirements: BLX1, BLX2: 2 AA alkaline or rechargeable batteries
- BLX4R: 12-15 V DC @ 260 mA, supplied by external power supply (tip positive)
Component Specifications:
BLX4R Receiver
- Output Impedance:
- XLR connector: 200 O
- 6.35 mm (1/4") connector: 50 O - Audio Output Level, Ref. ±33 kHz deviation with 1 kHz tone:
- XLR connector: -20.5 dBV (into 100 kO load)
- 6.35 mm (1/4") connector: -13 dBV (into 100 kO load) - RF Sensitivity: -105 dBm for 12 dB SINAD, typical
- Image Rejection: >50 dB, typical
- Dimensions: 50 mm X 198 mm X 163 mm H x W x D
- Weight, without antennas: 998 g
- Housing: Molded ABS, steel
- Power Requirements: 12-15 V DC @ 260 mA, supplied by external power supply (tip positive)
BLX2 Handheld Transmitter- Audio Input Level:
- gain 0dB: -20 dBV maximum
- gain -10dB: -10 dBV maximum - Gain Adjustment Range: 10 dB
- RF Transmitter Output: 10 mW, typical, varies by region
- Dimensions: 224 mm X 53 mm dia.
- Weight: 218 g (without batteries)
- Housing: Molded ABS
- Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
- Battery Life: up to 14 hours (alkaline)
- Tailored frequency response is smooth and extended
- Tuned specifically for vocal applications
- Cardioid polar pattern
- One-touch QuickScan frequency selection
PG58 Vocal Microphone
- Tailored frequency response is smooth and extended. Tuned specifically for vocal applications.
- Cardioid polar pattern picks up the most sound from in front of the microphone and some sound from the sides. Less susceptible to feedback in high volume settings.
- Dynamic cartridge has a simple, rugged coil. Handles extreme volume levels without distortion.
- Cartridge includes a neodymium magnet for high output level.
- Internal shock mount for reduced handling noise.
- Durable metal construction.
- On/off switch for onstage control.
- Hardened steel mesh ball grille that resists wear and abuse.
- Integral "pop" filter reduces explosive breath sounds and wind noise.
- Includes 15ft. (4.57m) cable, break-resistant mic clip and storage bag.
BLX2 Handheld Transmitter
- Power and battery status LED
- Adjustable gain control
- Quick and easy frequency matching
- AA batteries (included) provide up to 14 hours of continuous use
- 100 m (300 ft.) operating range (line of sight)
Receiver BLX4R
- One-touch QuickScan frequency selection quickly locates the best open frequency (in case of interference)
- Up to 12 compatible systems per frequency band (region-dependent)
- XLR and ¼" output connectors
- Two-color audio status indicator LED
- Green: Normal audio levels
- Red: Excessive audio levels (overload/clipping) - Adjustable output level
- Removable antennas for quick antenna distribution
- LC Display with detailed RF and audio metering
- Rack mount kit included
Furnished Accessories
- RACK MOUNT BRACKET, part number: 53A8611
- LONG RACK MOUNT BRACKET, part number: 53A8612
- LINK BRACKET, part number: 53B8443
- HARDWARE KIT, part number: 90AZ8100
- Swivel adater, part number: 90F4046
- Thread adapter, part number: 31B1856
- 2x, ANTENNA/BNC,1/4 WAVE, part number: 95A8699
- 2x, ADAPTER,BULKHEAD,BNC, part number: 95A8994
- BAG VINYL, ZIPPERED, part number: 95B2313
- 2x, CABLE,BNC,22 in., part number: 95K2035
- Power supply PS23
