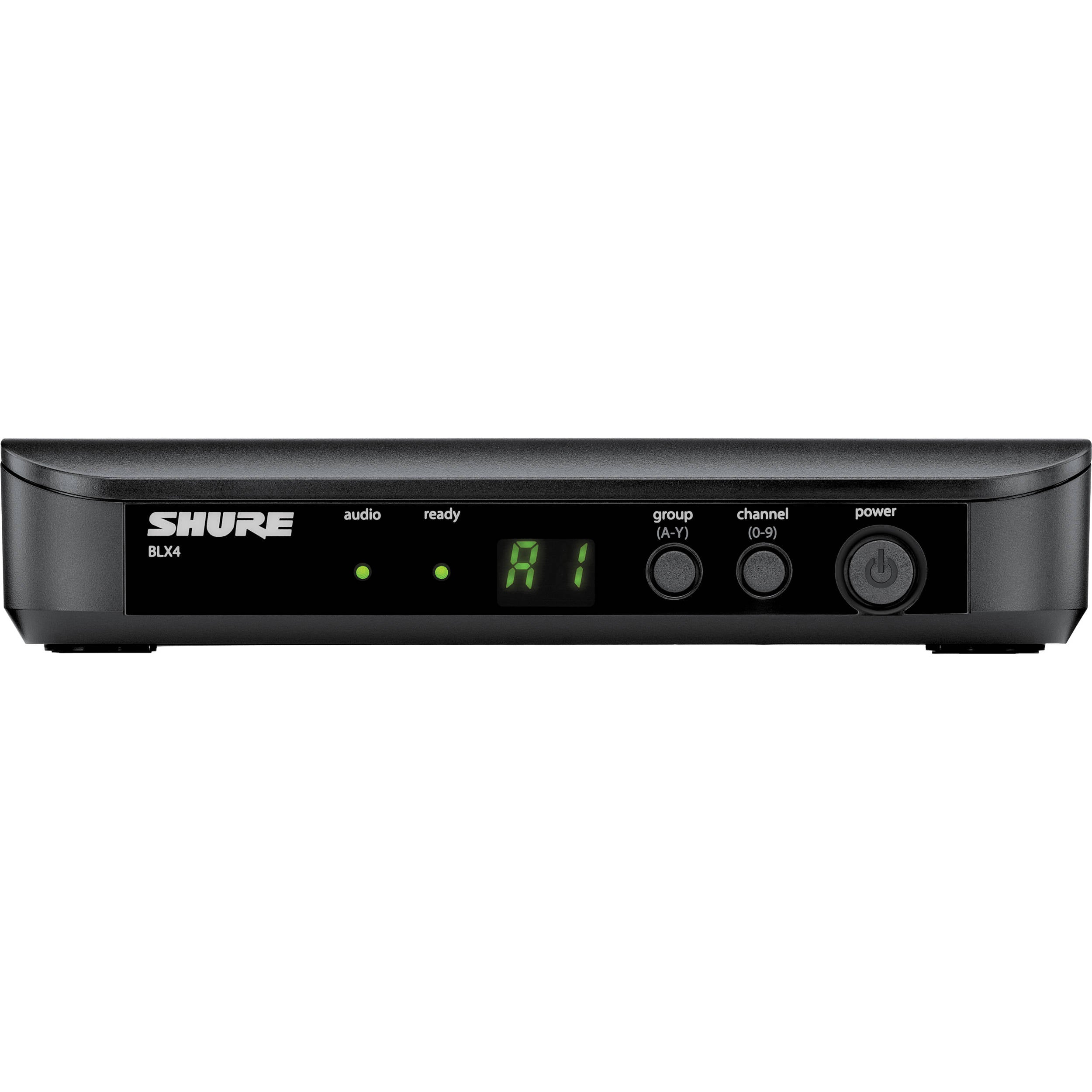

Shure BLX4UK Wireless Receiver For PG, SM & Beta Wireless
Quantity:
The BLX4 is an analogue wireless receiver which provides improved linearity and frequency response for up to 12 compatible channels per group with group and channel scan for easy set-up.
- Power supply: PS23
- Further specs:
- Output Impedance:
- - XLR connector 200 Ω
- - 6.35 mm (1/4") connector: 50 Ω
- Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone:
- - XLR connector –27 dBV (into 100 kΩ load)
- - 6.35 mm (1/4") connector –13 dBV (into 100 kΩ load)
- RF Sensitivity: 105 dBm for 12 dB SINAD, typical
- Image Rejection: >50 dB, typical
- Dimensions: 40 mm X 188 mm X 103 mm (H x W x D)
- Weight: 241 g
- Housing: Molded ABS
- Power Requirements: 12–15 V DC @ 160 mA, supplied by external power supply (tip positive)
- Output Impedance:
- Up to 12 compatible systems (region dependent)
- Microprocessor-controlled internal antenna diversity
- One touch QuickScan locates the best open
- Frequency
- ¼" and XLR audio outputs
- Two color audio status indicator LED
- Green: Normal audio levels
- Red: Excessive audio levels (overload/clipping)
