Shure

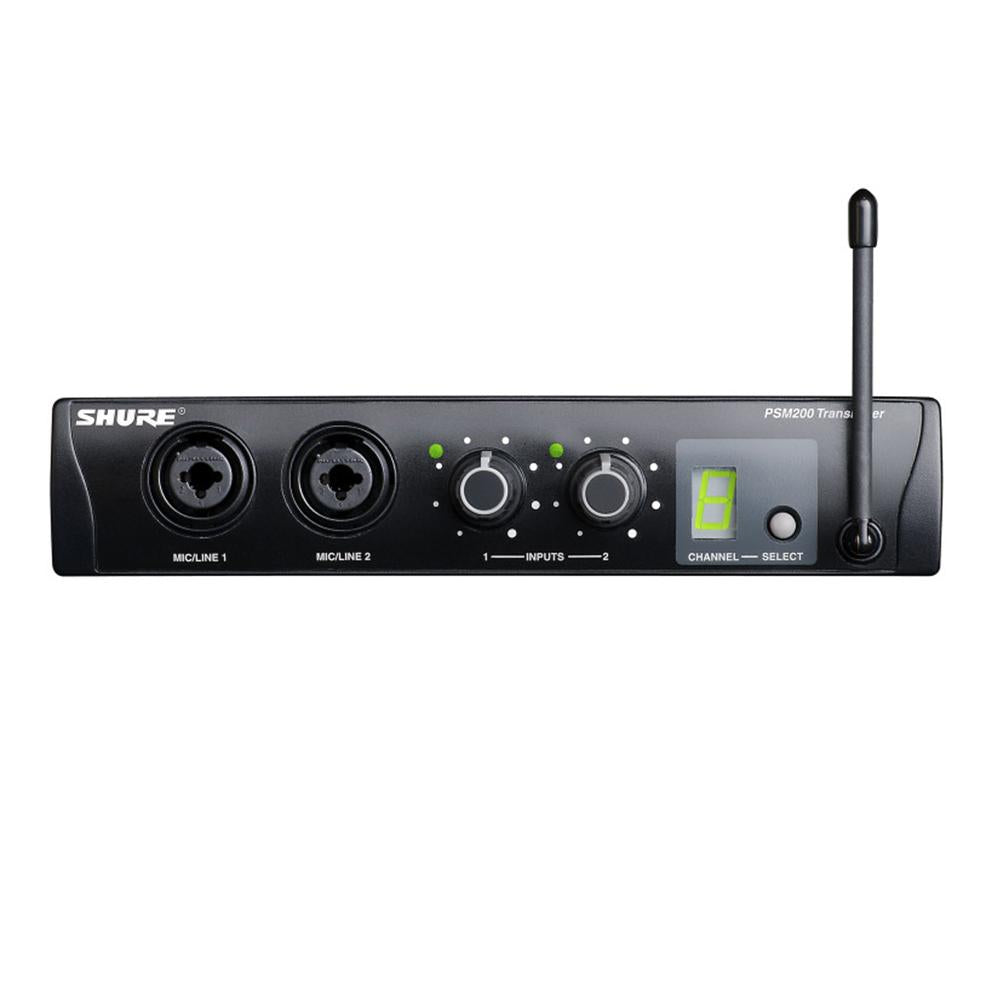

Shure P2T Transmitter For PSM200
The P2T is both a Transmitter and Mixer. It allows the user to connect two line-level or mic level inputs directly into the transmitter. The two signals can then be mixed independently. You can connect microphones or instruments directly to the inputs or use line outputs from a mixing console.
- RF Output Power: 10 - 30 mW (country dependant) mW
- Maximum Input Signal: -5 dBu
- Input Impedance: 1000 Ohm
- Input Connectors: XLR/6,3 mm Combo
- Further Technical Specifications:
- Modulation Limiter: Internal peak limiter (>10:1 hard knee compression)
- Antenna: 1/4 Wavelength, semi-rigid, PCB Mount
- Connector Type: XLR/1/4-inch combo
- Nominal Input Level: 25 dBu @ 1/2 volume (12 o'clock)
- Maximum Input Level: 5 dBu @ 1/2 volume (12 o'clock)
- Current: 170 mA maximum
- Dimensions: 220 mm x 140 mm x 40 mm (8.6 in. x 5.6 in. x 1.7 in.)
- Net Weight: 370 g (13 oz.)
- Built-in audio limiter
- Front mounted antenna
- Two mic/line input channels for mix control
- 1/2 Rack space
Key Features
- Built-in audio limiter
- Front mounted antenna
- Two mic/line input channels for mix control
- 1/2 Rack space
Operating Controls
- Input level control
- Frequency select
LED Indicators
- Tri-color input level
- Frequency
Inputs
- Two Mic/line, XLR-1/4 in. combo input channels
Outputs
- Two XLR split outputs
