Shure

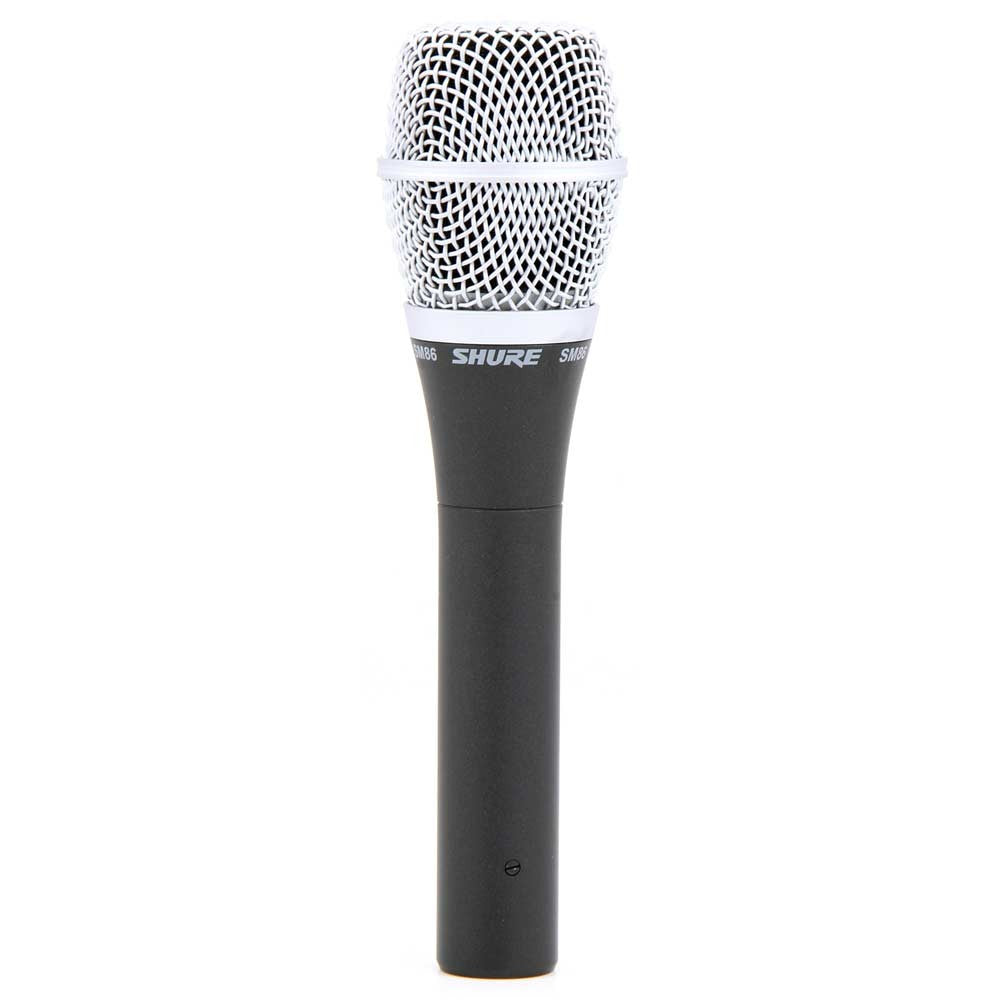

Shure SM86LC Cardioid Condenser Microphone
The SM86 is ideal for a lead vocal artist. It is most suited for performances on stage but is equally at home for use in the studio.
The SM86 has a condenser microphone for studio quality sound and a cardioid pickup pattern which isolates the main sound source while minimizing unwanted background noise, making it ideal if working with stage monitors and in-ear monitors. It has an extended high frequency response of 15Hz – 18kHz and a high maximum sound pressure level (SPL) of 124dB. The built-in three point shock mount minimizes handling noise, and a two-stage pop filter reduces wind and breath “pop” noise.
Condenser (electret bias)
50 to 18,000 Hz
Cardioid
150 Ohms at 1 kHz
Sensitivity (at 1,000 Hz)
(1 Pa = 94 dB SPL)
1000 Ohm Load at 1,000 Hz: +3 dBV (1.41 V)
1000 ohm load (1% THD): 147 dB
23 dB typical, A-weighted
124 dB (maximum SPL to A-weighted noise level
71 dB at 94 dB SPL (IEC 651)*
Phantom Supply Requirement: 11 to 52 Vdc, positive at both pins 2 and 3
Current Drain: 5.2 mA
Three-pin (XLR) professional audio
Dark gray enamel-painted steel with matte-finished silver colored steel grille
Net Weight
Net: 278 grams (9.8 oz)
Operating: -18 degrees to 60 degrees C (0 degrees to 135 degrees F) (relative humidity >90%)
Storage: -29 degrees to 74 degrees C (-20 degrees to 165 degrees F) (relative humidity >80%)
- Condenser cartridge for studio quality sound
- Tailored frequency response for a clear reproduction of vocals
- Cardioid polar pattern minimizes unwanted background noise
- Excellent choice for stage monitors and personal in-ear monitors
- Built-in three-point shock mount minimizes handling noise
- Two-stage "pop" filter reduces wind and breath noise
- Condenser cartridge for studio quality sound
- Tailored frequency response for a clear reproduction of vocals
- Rugged construction withstands the rigors of touring sound
- Cardioid polar pattern minimizes unwanted background noise
- Excellent choice for stage monitors and personal in-ear monitors
- Built-in three-point shock mount minimizes handling noise
- Two-stage "pop" filter reduces wind and breath noise
