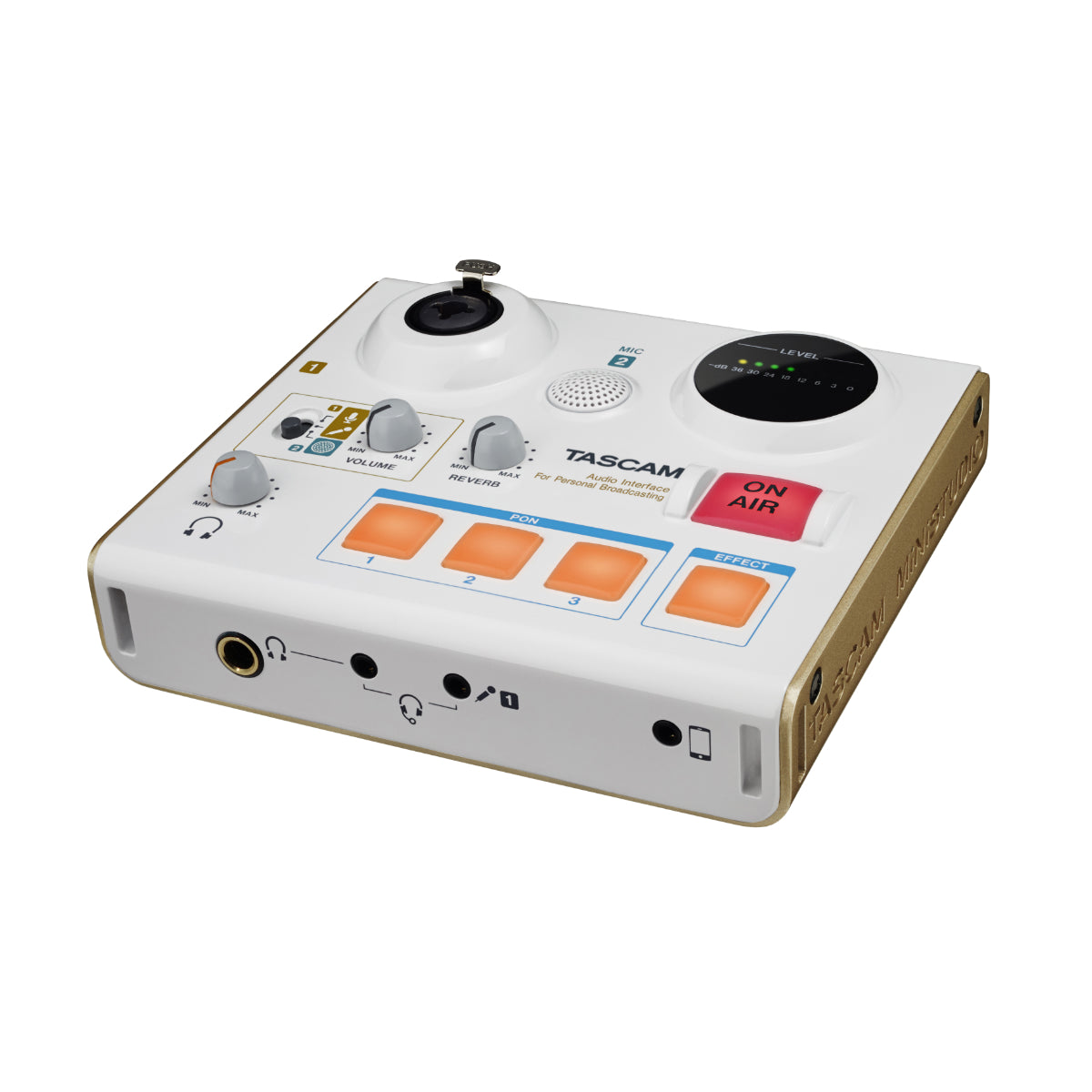

TASCAM US32 Personal Mini Studio Audio Interface
The TASCAM MiNiSTUDIO Personal US-32 is a complete, desktop online broadcast studio featuring a professional quality audio interface and a number of unique real-time effects.
Central to the MiNiSTUDIO Personal is an XLR/combo mic/line connector and a professional quality microphone preamp. Built-in phantom power allows you to quickly and easily connect your favorite dynamic or condenser microphone. Alternatively, the MiNiSTUDIO Personal features a built-in microphone for For the ultimate in plug and play convenience. To top it all off, the MiNiSTUDIO Personal features a 4-band parametric EQ, adjustable on-board compression and a digital reverb effect with a convenient front panel depth control.
MINISTUDIO PERSONAL US-32 SPECIFICATIONS
| MiNiSTUDIO Personal US-32 | |
| Sampling frequency | 44.1k/48k/88.2k/96kHz |
| Quantization bit rate | 16/24bit |
| Analog audio inputs | |
| MIC IN | IN 1 |
| Connector | XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED |
| Input impedance | 2.4k ohms |
| Maximum input level | +7.7dBV (2.427Vrms) |
| Gain | 45dB |
| INST IN | – |
| Connector | – |
| Input impedance | – |
| Gain | – |
| MIC IN (Plug-in Power) | 3.5mm(1/8”) 4-pole mini jack/3.5mm (1/8”) mini jack |
| Input Impedance | 5k ohms or more |
| Gain | 45dB |
| LINE IN | 3.5mm(1/8”) stereo mini jack |
| Input Impedance | 5k ohms or more |
| Maximum Input Level | +7.7dBV (2.427Vrms) |
| MIC 2 | Omnidirectional Condenser Mic |
| ANALOG AUDIO OUTS | |
| LINE OUT | – |
| Output impedance | – |
| Nominal output level | – |
| Maximum output level | – |
| PHONES | |
| Connector | 1/4” Stereo Phone-jack/ 3.5mm(1/8”) 4-pole mini jack/3.5mm (1/8”)Stereo mini jack |
| Maximum output level | 15mW+15mW above (Less than THD+NO.1%,32Ωloaded) |
| CONTROL INPUT/OUTPUT | |
| USB | USB B-type 4-pin |
| Format | USB2.0 High Speed (480MHz) |
| DC IN 5V | USB Micro B type |
| AUDIO PERFORMANCE | |
| Frequency response | |
| (To PHONE OUT) | |
| 44.1k/48kHz | 20Hz to 20kHz 0/-1dB (PHONE OUT, JEITA) |
| 88.2k/96kHz | 20Hz to 40kHz 0/-3dB (PHONE OUT, JEITA) |
| EIN | Less than -113dBu (150 ohm terminated, volume max) |
| THD+N | Less than 0.008%/ |
| S/N ratio | 90dB or more (MIC IN to PHONE OUT, volume min, JEITA) |
| Crosstalk | 95dB or more (MIC IN to PHONE OUT, 1kHz, JEITA) |
| COMPUTER SYSTEM REQUIREMENTS | |
| Windows | |
| Compatible computers | Windows-compatible computer with a USB 2.0 port For information of the latest OS version, please click here |
| CPU type/speed | Dual core/2 GHz or faster (x86) |
| Memory | 2GB or more |
| DRIVER | ASIO2.0 |
| Macintosh | |
| OS | For information of the latest OS version, please click here. |
| Compatible computers | Apple MacOS computer with a USB 2.0 port |
| CPU type/speed | Dual core/2 GHz or faster |
| Memory | 2GB or more |
| DRIVER | Core Audio |
| iOS | |
| OS | iOS 7 or later For more information about the OS compatibility on each models, please here. |
| General | |
| Power (when connected to PC) | USB bus-power |
| Power (when connected to an iOS device) | USB power adapter, External battery pack, TASCAM BP-6AA |
| Power consumption | 1W |
| Dimensions |
5.9" W ×1.57" H ×5.11" D |
| Weight | 0.84lb (382g) |
| Operating temperature | 41 to 95˚F (5 to 35°C) |
| Bundled Accessories | USB cable, Users manual, warranty card |
- High-Speed USB 2.0 Interface designed for online broadcasting
- Built-in DSP effects including: Reverb, Equalizer, Compressor and more
- 3 velocity-sensitive trigger pads
- Simple, intuitive layout
- Built-in omnidirectional condenser microphone
- XLR/TRS balanced inputs
