Union Audio ELARA.4 Black + Decksaver Cover

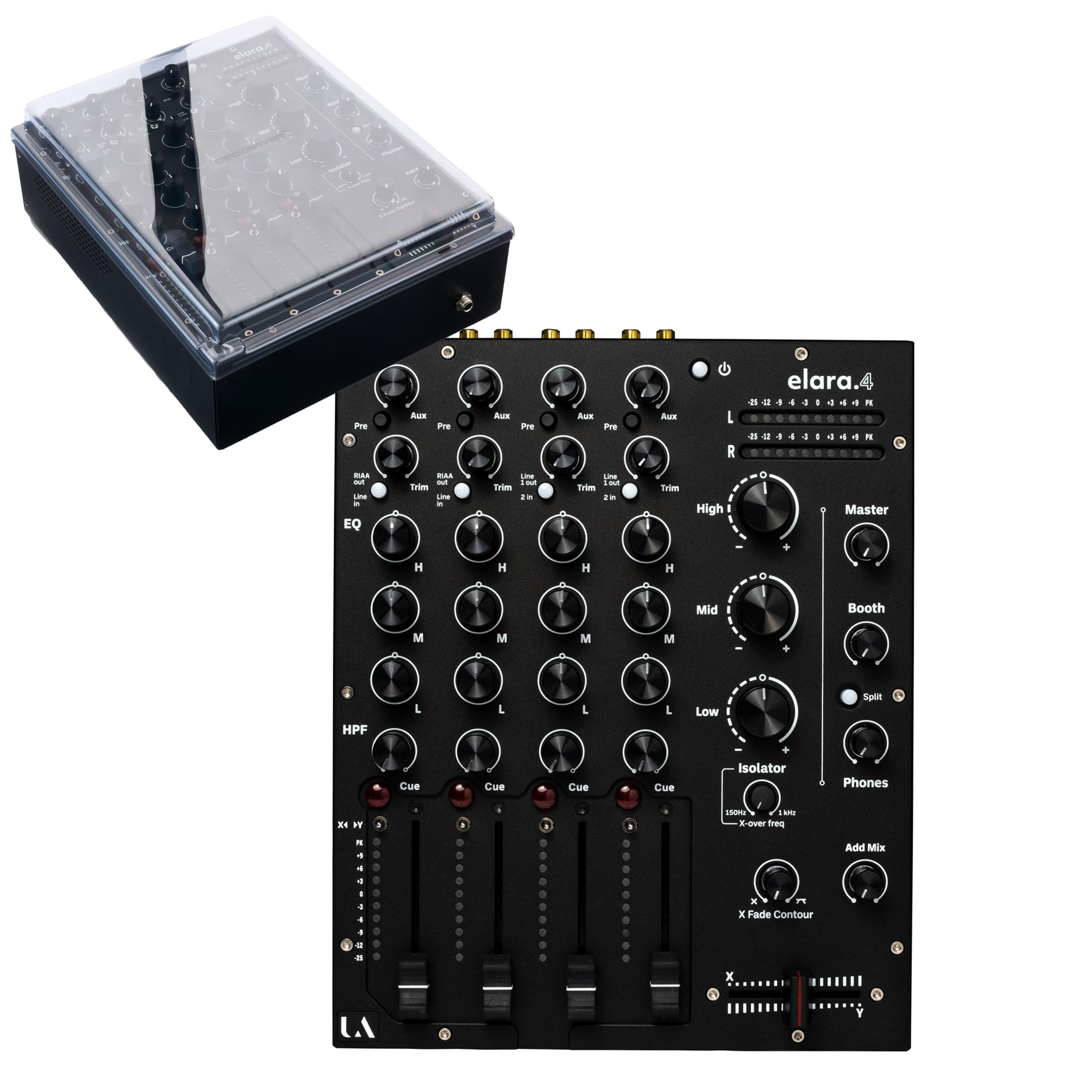

Union Audio Elara.4 Black + Decksaver Bundle
This premium package pairs the Elara.4 analogue DJ mixer with a custom Decksaver, ensuring top-tier performance and long-lasting durability. Whether in the studio or on stage, enjoy pristine sound, intuitive controls, and full protection from dust and damage.
Union Audio Elara.4 Black
The Elara.4 is a four-channel analogue DJ mixer that combines classic warmth with modern precision. Featuring high-quality phono and line inputs, an ergonomic layout with smooth rotary faders, and a unique master EQ/isolator, it offers unmatched versatility and creative control. Built with premium components and a rugged metal chassis, the Elara.4 delivers exceptional sound and reliability for DJs who demand the best.- Premium four-channel analogue mixer
- Perfect for DJs who value tradition and innovation
- Classic Analogue Warmth and Modern Design
- Ergonomic layout with smooth rotary faders, precise EQ controls, and user-friendly interface
- Comprehensive Cue system with per channel pre-fader monitoring, split-cue, and add-mix controls
- Master EQ/isolator with variable crossover control
- Versatile Connectivity
- Innofader crossfader with variable contour
- Per channel selectable routing via toggle switch for seamless transitions and creative mixing
Specification | Details |
---|---|
Distortion plus Noise (THD+N) un-weighted | 0dBu, 20Hz to 20kHz, Line In to Mix Out +4dBu |
Frequency Response | Line In to Mix Out +/-0.5dB 30Hz - 30kHz |
RIAA Accuracy | +/-0.5dB 20Hz to 20kHz |
Fader Shutoff | > -80dB |
L/R Crosstalk Line In to Mix Out 1kHz | <-75dB |
Residual Noise (22Hz to 22kHz Un-Weighted) | <-98dBu |
Mix Output Noise (Line In to Mix Out Unity) | <-81dBu |
Maximum Output Level (Mix Out 0.5% THD) | +27dBu |
Dynamic Range | 108dB |
Channel High-Pass Filter (Fully Clockwise) | -3dB/1800Hz |
Iso/EQ MID Frequency Adjustment Range | 150Hz to 1kHz |
Channel 3 Band EQ | 200Hz, 1100Hz, 2000Hz |
Headphone Amplifier Maximum Output Level | 900mW RMS - 36 ohms |
Power Supply Type | External SMPSU |
Mains Voltage Range | 90-260VAC |
Output | 18V DC 30W |
Efficiency | LEVEL VI |
Mixer Height | 283mm |
Width | 230mm |
Depth | 88mm |
Weight | 3.25kg |
Packed Dimensions (L x W x H) | 37cm x 36cm x 19cm |
Packed Weight | 4.85kg (11lb) |
