- 4 x handheld transmitters, each with colour code ring
- Four channel, metal UHF receiver
- LED status indicators
- Removable 19” rackmount brackets
- 4 x balanced XLR outputs
- 1 x unbalanced 6.35mm jack mixed output
- 6.35mm (1/4”) jack to jack patch cable
- USB charging via supplied dual USB cable
- Dual squelch circuit
- CH70 license free operation
W-AUDIO
W AUDIO MIC80 RM Quartet 4 Radio Mic System

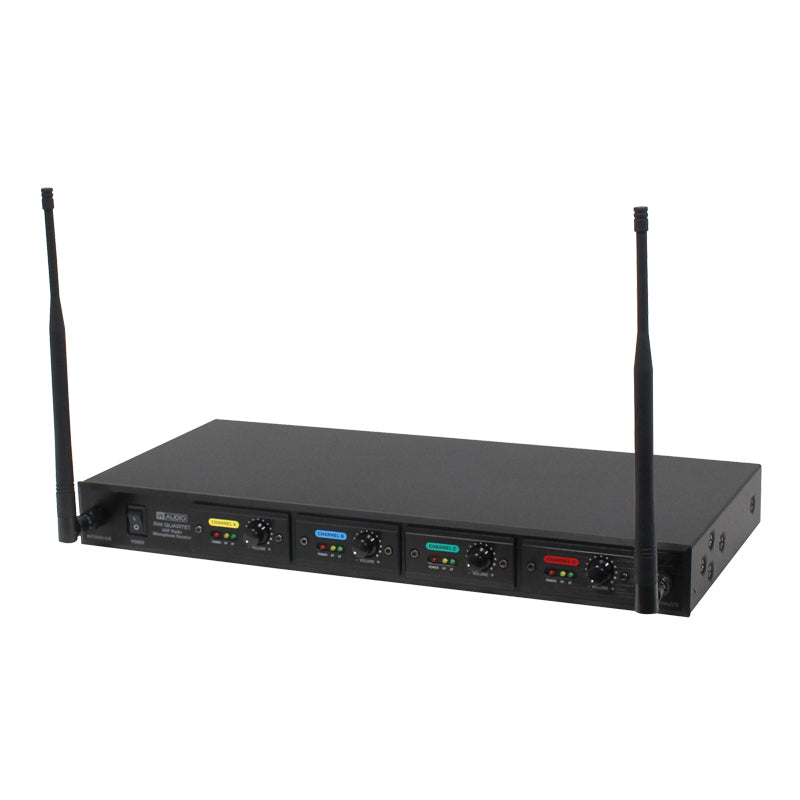

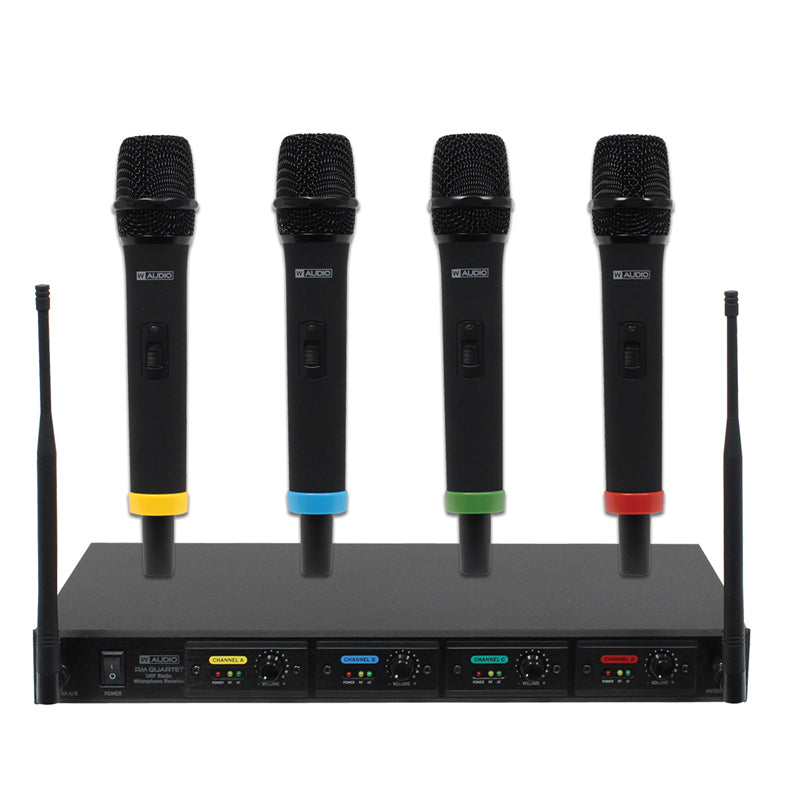

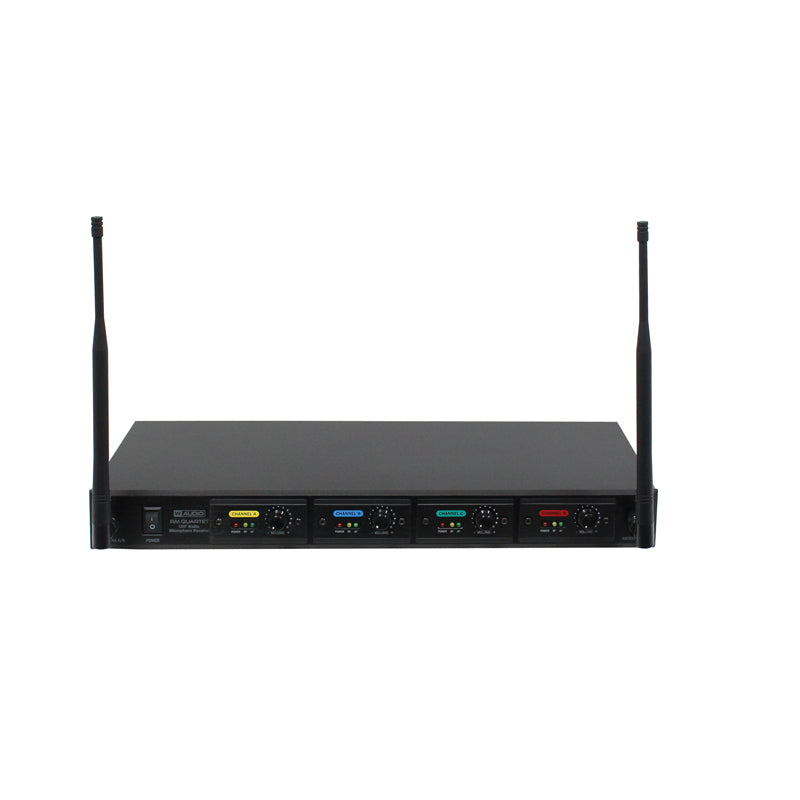

The new WAudio RM Quartet is a wireless mic system with 4 handheld microphones and a 19 inch rack mount receiver.
These are perfect for vocal and public address where up to four handheld transmitters are required.

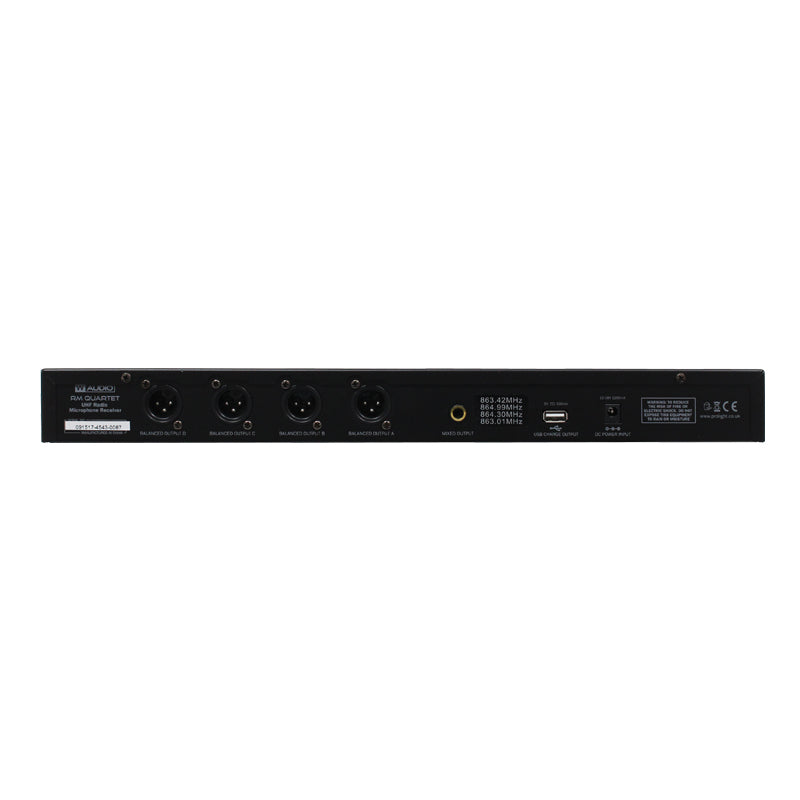

The robust design allows the system to withstand the rigours of the road making it perfect for karaoke, entertainers and performers. The rack mountable receiver features four balanced XLR outputs, one for each channel plus one mixed output via an unbalanced 6.35mm (1/4”) jack. The receiver features a USB 5V power outlet for charging the handheld receivers with the supplied dual USB cable.
The RM Quartet features:
- Operating frequency: 863.42Mhz / 864.99Mhz / 864.30Mhz / 863.01Mhz
- AF output impedance: 2.2K Ohms
- Maximum output level (balanced): 0-400mV
- Maximum output level (unbalanced): 0-200mV
- Total harmonic distortion: less than 0.5% @1KHz
- Frequency response: 40Hz-18KHz
- Power supply: DC 12-18V, 500mA (14V, 1.2A adaptor supplied)
- Receiver dimensions (H x W x D): 45 x 420 x 220mm
- Weight: 3.8kg

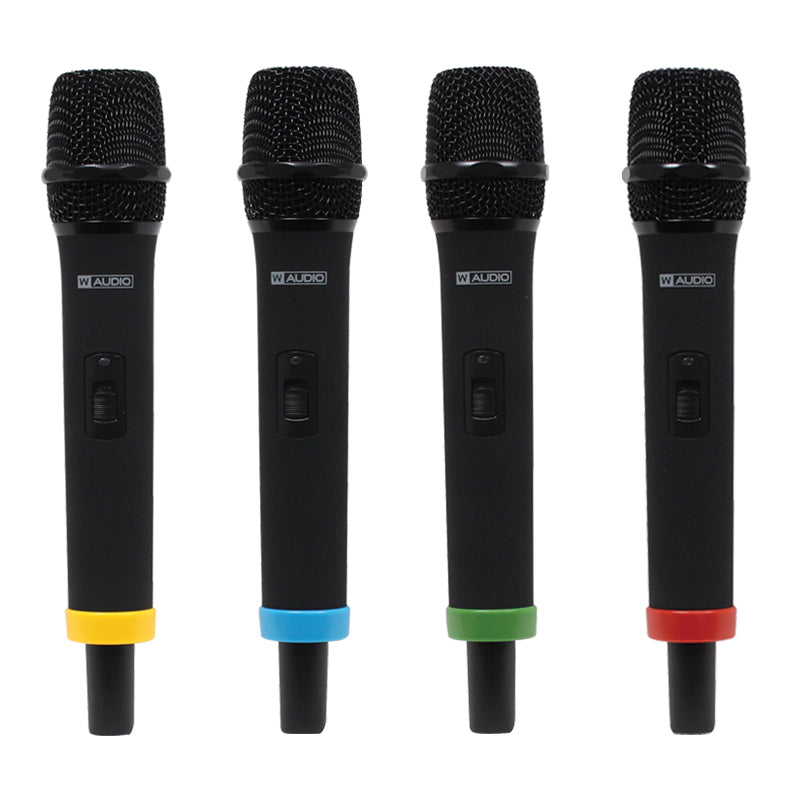

- 4 x handheld mics
- Four channel, metal UHF receiver
- LED status indicators
- Removable 19” rackmount brackets
- 4 x balanced XLR outputs
- 1 x unbalanced 6.35mm jack mixed output
- USB charging via supplied dual USB cable
- Dual squelch circuit
- CH70 license free operation
