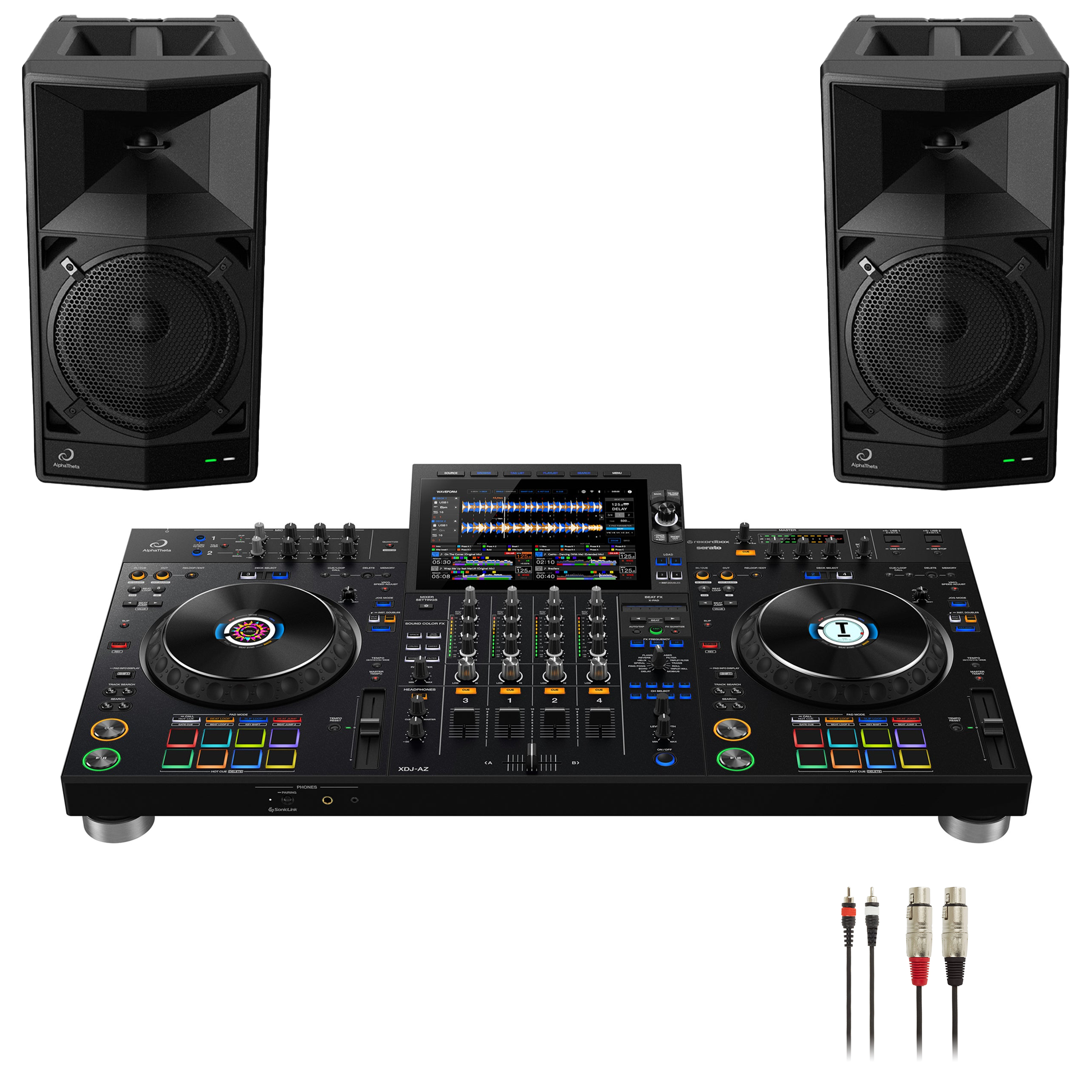

AlphaTheta XDJ-AZ + WAVE-EIGHT Pair Bundle
Take your DJ setup to the next level with the AlphaTheta XDJ-AZ + WAVE-EIGHT Pair Bundle, a complete DJ package that includes the powerful AlphaTheta XDJ-AZ four-channel standalone system and two AlphaTheta WAVE-EIGHT speakers. Designed for both professional and aspiring DJs, this bundle ensures your performances sound incredible, with crisp, clear audio and wireless connectivity. Plus, it includes a 1-meter XLR to RCA cable for connecting the SonicLink receiver, making setup quick and easy.
AlphaTheta XDJ-AZ
- Standalone 4-Channel DJ System – Mix up to four decks without the need for a laptop, offering complete creative freedom.
- 10.1-inch Multi-Touch Screen – Large, high-resolution screen for easy browsing and track information display.
- Jogwheels from CDJ-3000 – Provides smooth, accurate control for seamless transitions and precise mixes.
- Club-Style Layout – Inspired by the DJM-series and CDJ-3000, providing a familiar, intuitive setup for experienced DJs.
- SonicLink Wireless – Ultra-low-latency headphone connectivity, compatible with the HDJ-F10 headphones.
- 32-bit ESS Digital-to-Analog Converter – Delivers premium sound quality, perfect for both small and large venues.
- Built-in Wi-Fi – Stream and access your Rekordbox cloud library or directly stream from Beatport (subscriptions required).
- Serato DJ Support – Full support for Serato DJ, available starting December 2024, making it easy to switch between software platforms.
- Multiple USB Inputs – Multiple device support for easy switching between USB drives during your performance.
- Waveform Preview & Key Sync – Clear, detailed visual feedback and key synchronization for flawless transitions.
AlphaTheta WAVE-EIGHT Speaker Pair
- SonicLink Wireless – Ultra-low-latency wireless connection for synchronized, high-quality sound between your DJ gear and the speakers.
- 8-Inch Driver & Class D Amplifier – Provides high-quality audio with powerful bass and clear, crisp treble.
- Vortex Bass Accelerator – Enhances bass frequencies for a richer, more dynamic sound.
- IPX4 Waterproof Rating – Ideal for outdoor events, rain or shine, with a durable, waterproof design.
- Portable & Easy to Move – Extendable handles, casters, and built-in pole mount for maximum convenience and mobility.
- Up to 8-Hour Battery Life – Play continuously for up to 8 hours on a full charge, keeping the music going all night long.
- Multiple Sound Modes – Easily switch between Mono, Stereo, and Subwoofer modes to match the acoustics of any venue.
- Pairable for Stereo Sound – Create a stereo setup by using two speakers, or add a third for a dedicated subwoofer for enhanced bass.
XDJ-AZ Specifications
- Maximum Dimensions (W × D × H) - 895 × 504.1 × 133.4 mm / 35.24” × 19.85” × 5.25”
- Main unit weight - 13.5 kg / 29.8 lbs.
- Frequency response - 20 Hz - 20 kHz (USB)
- S/N ratio - 115 dB (USB)
- Total harmonic distortion - 0.0018 % (USB)
Accessories
- Power cord
- Quick Start Guide
- Precautions for use
- Warranty (for some regions)
Compatible software
- rekordbox for Mac/Windows
- rekordbox for iOS/Android
- Serato DJ Pro (Coming December 2024)
Terminals
Inputs
- LINE / PHONO × 2 (RCA)
- MIC × 2 (XLR & 1/4” TRS jack)
Outputs
- MASTER × 2 (XLR × 1, RCA × 1)
- BOOTH × 1 (1/4” TRS jack)
- PHONES × 2 (1/4” stereo jack × 1, 3.5 mm stereo mini jack × 1)
USB
- USB Type-A × 2
- USB Type-C × 1
Others
- LAN port (100BASE-TX) × 1
Wireless LAN
- Supported standards - IEEE 802.11 a / b / g / n / ac
- Frequency band used - 2.4 GHz / 5 GHz
Bluetooth
- Wireless system - Bluetooth ver. 5.3
- Compatible codecs - SBC, AAC
SonicLink
- Frequency band used - 2.4 GHz
Performance Control
- Channels - 4
- Deck Control - 4 (USB Storage Device)
- Deck Control - 4 (DJ Software Control)
- Jog Wheel - 206 mm
- Jog Feeling - Yes
- Sound Color FX - DUB ECHO, NOISE, SWEEP, FILTER, SPACE, CRUSH
- Beat FX - DELAY, ECHO, PING PONG, SPIRAL, REVERB, TRANS, FILTER, TRIPLET FILTER, FLANGER, PHASER, ROLL, TRIPLET ROLL, HELIX, MOBIUS
Type | Closed, dynamic |
---|---|
Frequency response | 5 Hz – 30 kHz |
Impedance | 32 Ω |
Output sound pressure level | 105 dB |
Unit | ø40 mm dome-type |
Weight | 356 g (without cable) |
Charge time | Approx. 2.5 hours (headphones) / Approx. 4 hours (transmitter)*3 |
Warranty period | 2 years |
Accessories | Transmitter (HP-TX01) × 1 1.6 m straight cable × 1 ø6.3 mm stereo standard plug adapter (screw-type) × 1 USB charging cable (USB Type-C to USB Type-C) 0.5 m × 2 Pair of spare ear pads × 1 Carrying pouch × 1 Quick Start Guide × 1 Precautions for use × 1 |
Maximum transmission distance | Approx. 15 m in unobstructed locations*1 |
---|---|
Playback time | Approx. 9 hours*2 |
Version | Bluetooth standard version 5.2 |
---|---|
Maximum transmission distance | Approx. 10 m in unobstructed locations*1 |
Compatible Bluetooth profiles | A2DP, AVRCP, HSP, HFP |
Compatible codecs | SBC, AAC |
Playback time | Approx. 30 hours (with ANC on)*2 |
*1 Transmission distances are a guideline. Transmission distances may change depending on the connected device and the surrounding environment. *2 Sometimes less, depending on conditions of use. *3 To charge from empty state – time may vary, depending on conditions of use. |
Chroma Drive USB Specifications:
- High speed USB flash memory designed for rapid-transfer of many smaller files
- USB 3.2 Gen 1 (with memory that performs well at lots of rapid small file updates and read/writes like in Rekordbox syncing)
- Quality metal alloy build
- Engraved with DJ TechTools logo on one side
- Dual USB connectors in USB-A and USB-C
- Rotatable cover (with satisfying mechanical action) to protect connector not being used
- 1 year limited warranty for mechanical issues (water, accidental, or intentional damage not covered, please buy an Extend warranty if you want all issues covered)
- Support from DJ Techtools staff for all drive issues
COMPATIBLE SOFTWARE:
- Standalone
- Rekordbox DJ
- Denon Engine Prime
SIZE & WEIGHT:
- Dimensions: 2.6 x 0.66 x 0.39 In / 5.08 x 0.0 x 0.0 cm
- Weight: 0.05 lb / 0.023 kg
Please note, streaming services are unlocked by your choice of DJ software.
*An internet connection and separate subscriptions are required to use these services.
