ZOOM
Zoom H6e 32-Bit Float 6-track Portable Recorder
- Main features of the Zoom H6e 32-Bit Float 6-track Portable Recorder include:
- 6-track 32-bit float recorder with Dual A/D Converters
- Clip-free recording with no need to set gain
- Records up to 96kHZ sample rate
- Interchangeable Mic Capsule System 3.0 with 32-bit float support
- Included X/Y Mic Capsule captures up to 135 dB SPL

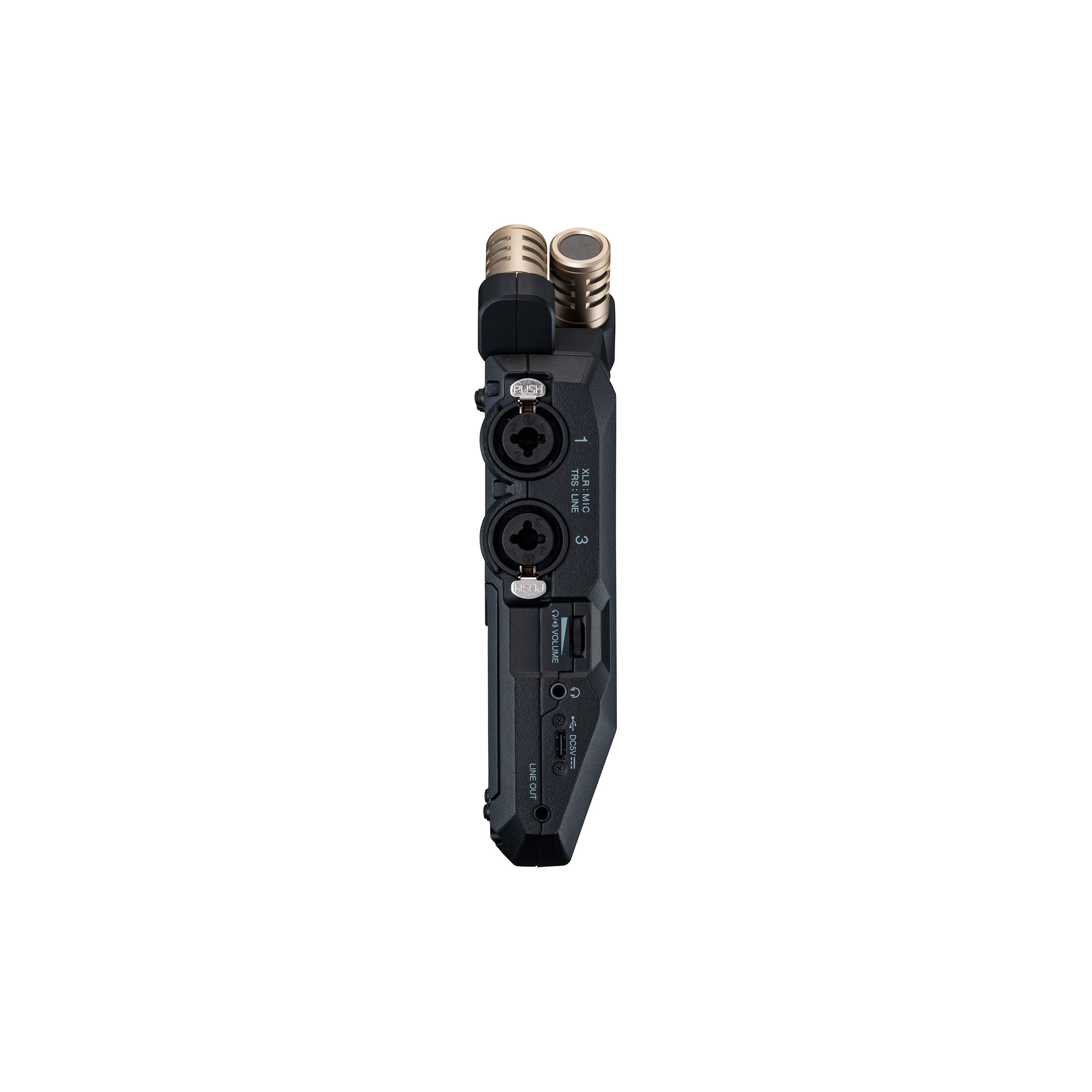

- 4 XLR/TRS combo inputs with locking connector
- Color LCD Screen
- Built-in mixer to adjust each track’s audio level
- Built-in speaker for quick reference playback
- 3.5mm headphone output plus 3.5mm line output
- Voice Guidance accessibility for the visually impaired
- 32-Bit Float audio interface for PC, Mac, iOS, and Android devices via USB-C port
- Use as an interface and record to SD card simultaneously
- Using the BTA-1* Bluetooth Adapter, sync with wireless timecode devices via bluetooth
- Use the BTA-1* Bluetooth Adapter to pair with the H6essential Control App for iOS
- Record to SD cads up to 1TB

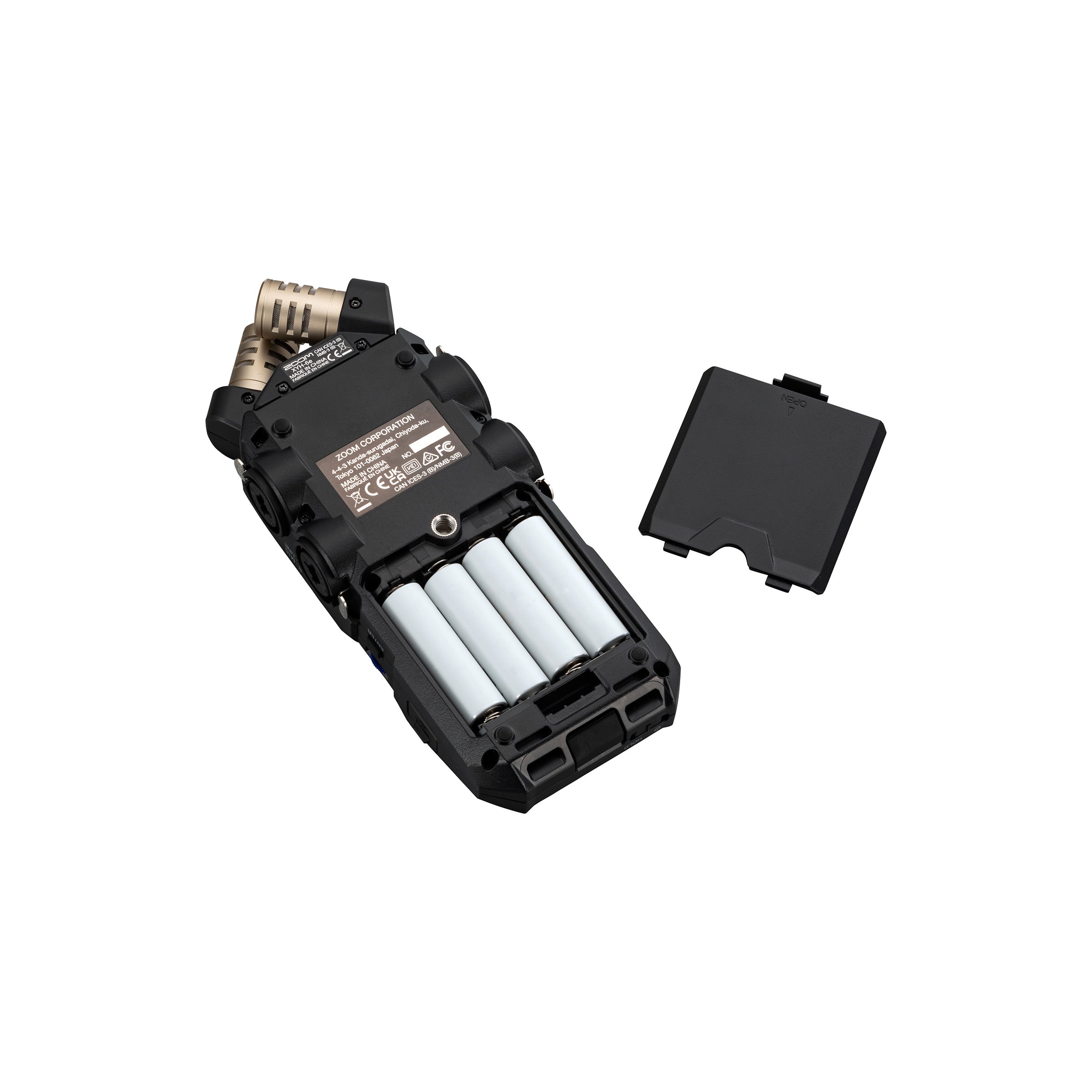

- 10 hours of battery life on AA battery (2x) or USB-C Bus Power
- *Please note: BTA-1 Adapter not included
STEP UP TO 32-BIT FLOAT
With 32-bit float and dual AD converters the H6essential captures huge dynamic range. This gives creators the ability to record perfect audio, clip-free every time.
THE FIRST RECORDERS WITH ACCESSIBILITY
The Essential Series was designed with Accessibility for the blind and visually impaired. Navigate the menu with audible descriptions through the built-in speaker or headphones. Creators can choose English, Spanish, French, Japanese, German, Italian or Chinese.*
SIX PERFECT TRACKS
The 4 XLR/TRS combo inputs feature ultra-clean Zoom preamps, and the included X/Y microphones can capture up to a booming 135 dB SPL, equivalent to a jet taking off.
NEXT GENERATION 3.0 CAPSULE SYSTEM
The H6essential’s 3.0 capsule system has been updated to support 32-bit float and gives creators more options to use the right mic for their recording.
RECORD AND STREAM
Use the USB-C port to connect to PC, Mac, iOS, and Android device to use the H6essential as a 32-bit float interface while simultaneously recording all 6 tracks to an SD card.
ESSENTIAL FOR CREATORS
FOR MUSICIANS
The H6essential is a portable studio. Mic up to 4 instruments using the XLR inputs and use the X/Y microphones to capture the full ensemble in beautiful stereo.
FOR FILMMAKERS
32-bit float recording gives filmmakers confidence with every take. The interchangeable capsules, 4 XLR inputs and wireless timecode make the H6essential invaluable on any set.
FOR PODCASTERS
When everyone wants to be on your podcast, the H6essential has you covered with 4 XLR inputs. For two additional XLR inputs, connect the optional EXH-6e capsule.
WAVEFORM DISPLAY
The H6essential has a waveform display so you can see your audio as it records.
BUILT-IN MIXER For full control of your mix, hit the ‘Mixer’ button and quickly adjust your levels.
NEW CONNECTIONS
PAIR WITH YOUR iOS DEVICE
Use the BTA-1* Bluetooth Adapter to pair with your iOS device to remotely hit record, adjust your mix, view your waveforms, and change settings.
BLUETOOTH TIMECODE SYNC
With the BTA-1* Bluetooth Adapter you can also pair with Bluetooth timecode devices for audio and video sync.
*Please note: BTA-1 Adapter not included
REMOVE THE MICS
When the X/Y mic is not needed, detach the capsule and use the included cap for a low profile setup.
MORE UPGRADES
QUIETER CONTROLS
Recording and rotary controls have been meticulously designed to allow for silent operation.
LISTEN BACK WITH THE ONBOARD SPEAKER
Use the improved onboard speaker to listen to your recordings for quick reference.
OUTPUTS YOU NEED
Use the line output to connect to a camera and the headphone output to monitor your audio.
HIGHER VISIBILITY

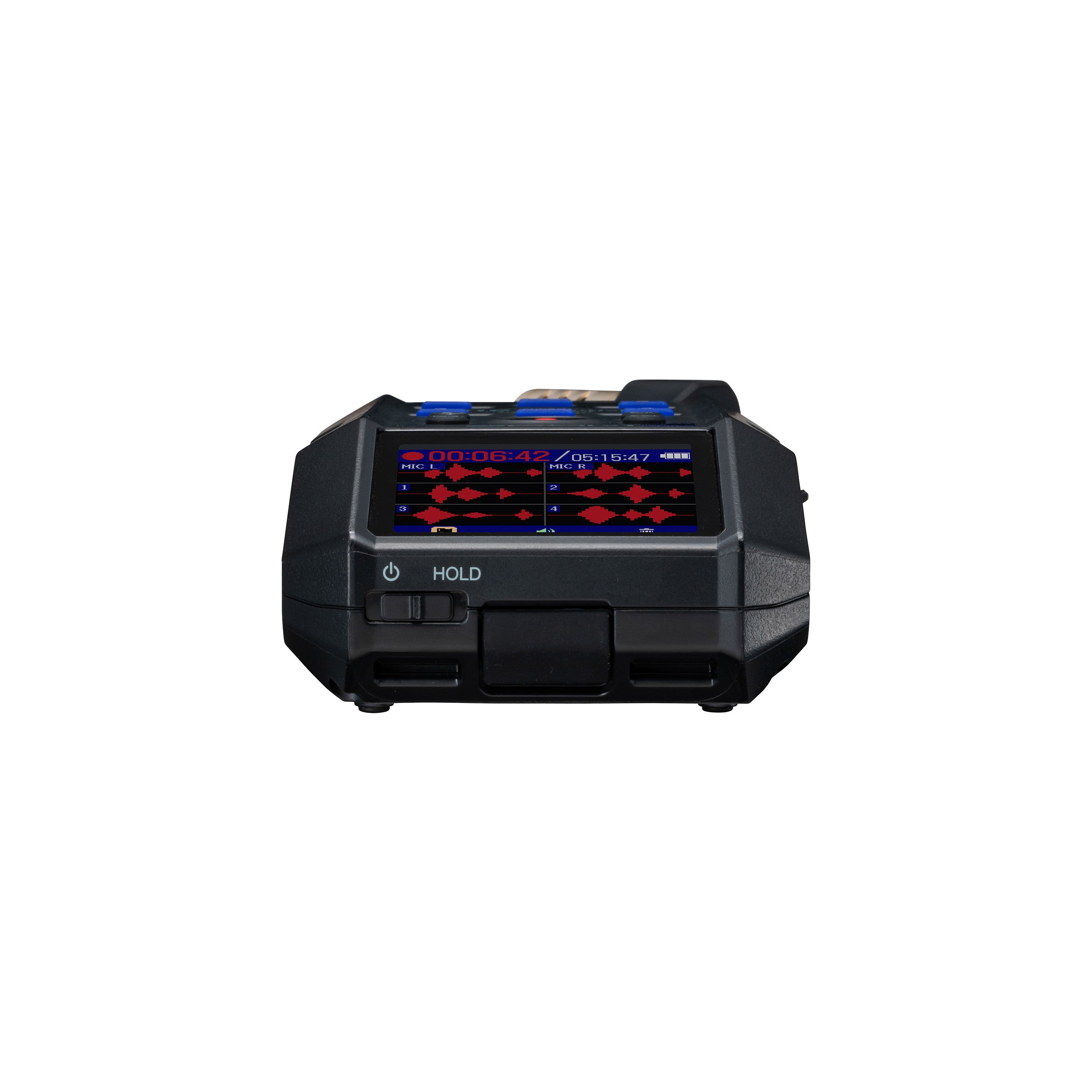

The new full-color LCD screen provides you with a more vivid view as you record and navigate the menu.
Essential Versatility For All Creators
CAPSULES:
XYH-6e Stereo Mic Capsule (Included)
Adds 2 high-quality microphones in a X/Y stereo arrangement. This arrangement is most sensitive to audio directly in front while also capturing a clean stereo image.
SSH-6e Stereo Shotgun Capsule
The SSH-6e includes a super-directional microphone to pick up sound in the center, as well as a bidirectional side mic to pick up sounds from the left and right. The mid-side stereo image is adjustable from mono to ultra wide stereo pickup. You can capture dialogue with the center mic, then mix in the desired amount of environmental sound captured by the side mic.
EXH-6e Input Capsule
If you need more inputs, simply plug in the EXH-6e dual XLR/TRS combo capsule. This allows you to connect 2 additional microphones, instruments, or line-level sources. Phantom power can be applied if you connect power to the USB-C port on the capsule. There is also a 3.5mm jack for line or mic level input with plug in power available for lavalier mics.
- In- and outputs
- Analog outputs: 2
- Analog inputs: 4
- Microphone inputs: 4
- Digital outputs: None
- Digital inputs: None
- Headphone outputs: 1
- Tracks
- Number of tracks: 6
- Number of tracks for simultaneous recording: 8
- Memory
- Storage media: Micro SD / SDHC / SDXC Card
- Maximum capacity storage media: 1 TB
- Other
- Max. Sampling rate96 kHz
- Options
- 32-bit float: Yes
- Effects: No
- Voice Guide: Yes
- Battery mode possible: Yes
- Touchscreen: No
- USB: Yes
- Display: Yes
- Built-in microphone: Yes
- Limiter: Yes
- Internal rechargeable battery: No
- Built-in speaker: Yes
- Auto-Gain: No
- Phantom power supply: Yes
