FOCUSRITE ISA Two 2-channel mic preamp
Quantity:
The Focusrite ISA Two features two channels of Focusrite's classic transformer-based premium microphone preamplification; our cornerstone design which has contributed to the signature sound of many hit records across the past four decades. Each channel has balanced insert points, variable high-pass filter, and of course the now customary variable input impedance allowing you to get the very best results from any microphone.

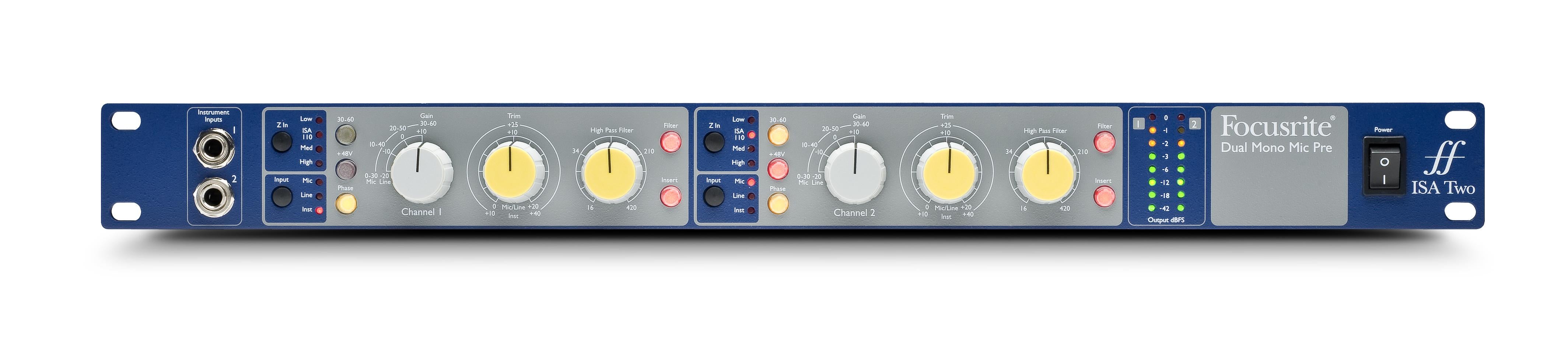

Front panel, per channel:
1/4" instrument input
Variable input impedance - Low, ISA 110, Medium, High
Input selection - Mic, Line, Instrument
0 - 30 dB/30 - 60 dB gain switch
Phantom power switch
Phase invert switch
0 - 60 dB gain in 10 dB steps
0 - +20 dB continuously variable trim
Variable high-pass filter with on/off switch
Insert point on/off switch
Eight-LED user-calibrated level meters
Single power switch

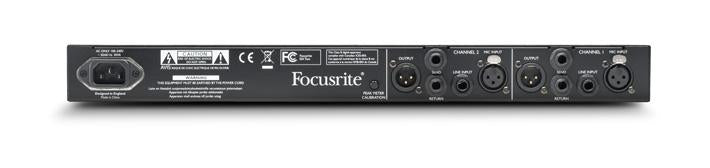

Rear panel, per channel:
XLR-F mic inputs
1/4" TRS line inputs
1/4" TRS Sends
1/4" TRS Returns
XLR-M line output
Single peak meter calibration dial
Single IEC power socket
1/4" instrument input
Variable input impedance - Low, ISA 110, Medium, High
Input selection - Mic, Line, Instrument
0 - 30 dB/30 - 60 dB gain switch
Phantom power switch
Phase invert switch
0 - 60 dB gain in 10 dB steps
0 - +20 dB continuously variable trim
Variable high-pass filter with on/off switch
Insert point on/off switch
Eight-LED user-calibrated level meters
Single power switch
Rear panel, per channel:
XLR-F mic inputs
1/4" TRS line inputs
1/4" TRS Sends
1/4" TRS Returns
XLR-M line output
Single peak meter calibration dial
Single IEC power socket
- Up to 80 dB of clean, low-noise gain
- Variable cut-off high-pass filter
- Eight-segment user-calibrated LED meter per channel
- Two front panel instrument inputs
- Dedicated per-channel insert point
- 1U 19" rack-mount format
- Two ISA Series transformer-based mic preamplifiers
- Variable input impedance
- Up to 80 dB of clean, low-noise gain
- Variable cut-off high-pass filter
- Eight-segment user-calibrated LED meter per channel
- Two front panel instrument inputs
- Dedicated per-channel insert point
- 1U 19" rack-mount format
