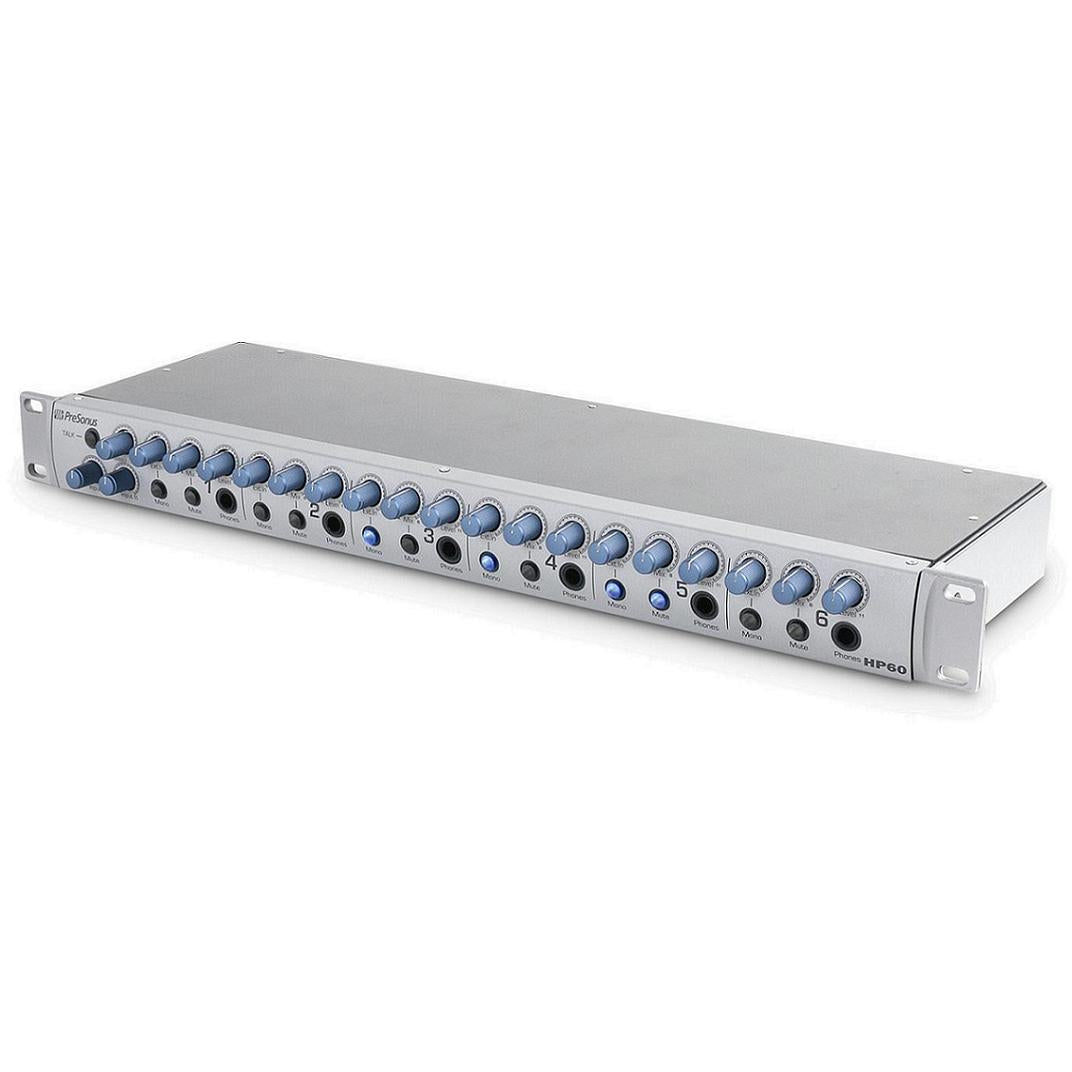

PRESONUS HP60 6-Channel Headphone Mixing System
The Presonus HP60 is a 6-channel headphone mixer. Each of the HP60’s six headphone amps has its own level control and puts out 150 mW - loud enough for anyone.
The HP60 features two sets of line-level, stereo inputs that are routed to all six headphones; a Mix control that sets their relative levels for each headphone output. So you can feed the main control-room mix to channel A and the click to channel B and use the Mix controls to individually raise or lower the click relative to the main mix for each musician.
In addition to the two pairs of main stereo inputs, you get an external stereo input pair with level control for each headphone channel. A Mono switch lets you sum the left and right inputs. Additionally, a mute switch is provided for each headphone output. So you can send each person a feed of just their instrument or voice and can control the level separately for each.
Headphone Outputs
Power
Physical
- 6-channel headphone mixer
- Individual level control
- Two sets of line-level with mix control

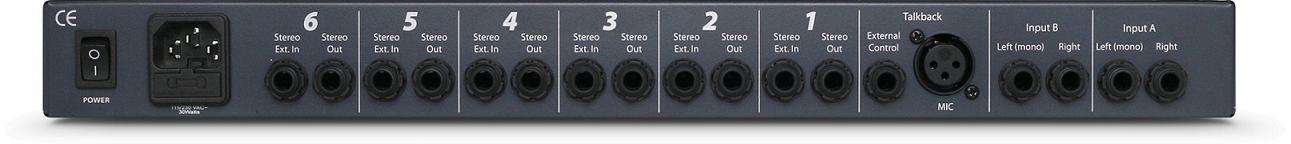

Input/Output
- 6 screaming-loud (150 mW/channel) headphone outputs (front panel)
- 6 unbalanced stereo ¼" line outputs (1 per channel); carries a copy of the channel mix
- 6 unbalanced stereo ¼" external analog line inputs (1 per channel) for "more me," with trim controls
- 4 balanced ¼" analog line inputs (L/R Mix input pairs A and B)
- 1 balanced XLR Talkback input for external dynamic microphone
- 1 ¼" footswitch jack for hands-free Talkback operation
Meters, Controls, and Features - 2 stereo input channels (A and B)
- Channel controls - External input level
- Headphone level control for each headphone output
- Mix A/B control (blends signals from input pairs A and B)
- Mono switch for external input
- Mute switch (mutes input pairs A and B)
- Master controls - Input A level
- Input B level
- Talk button (momentary switch)
- Talkback-mic level
Physical - 1U 19" rack-mountable, rugged steel chassis
- Internal power supply with standard IEC connector
