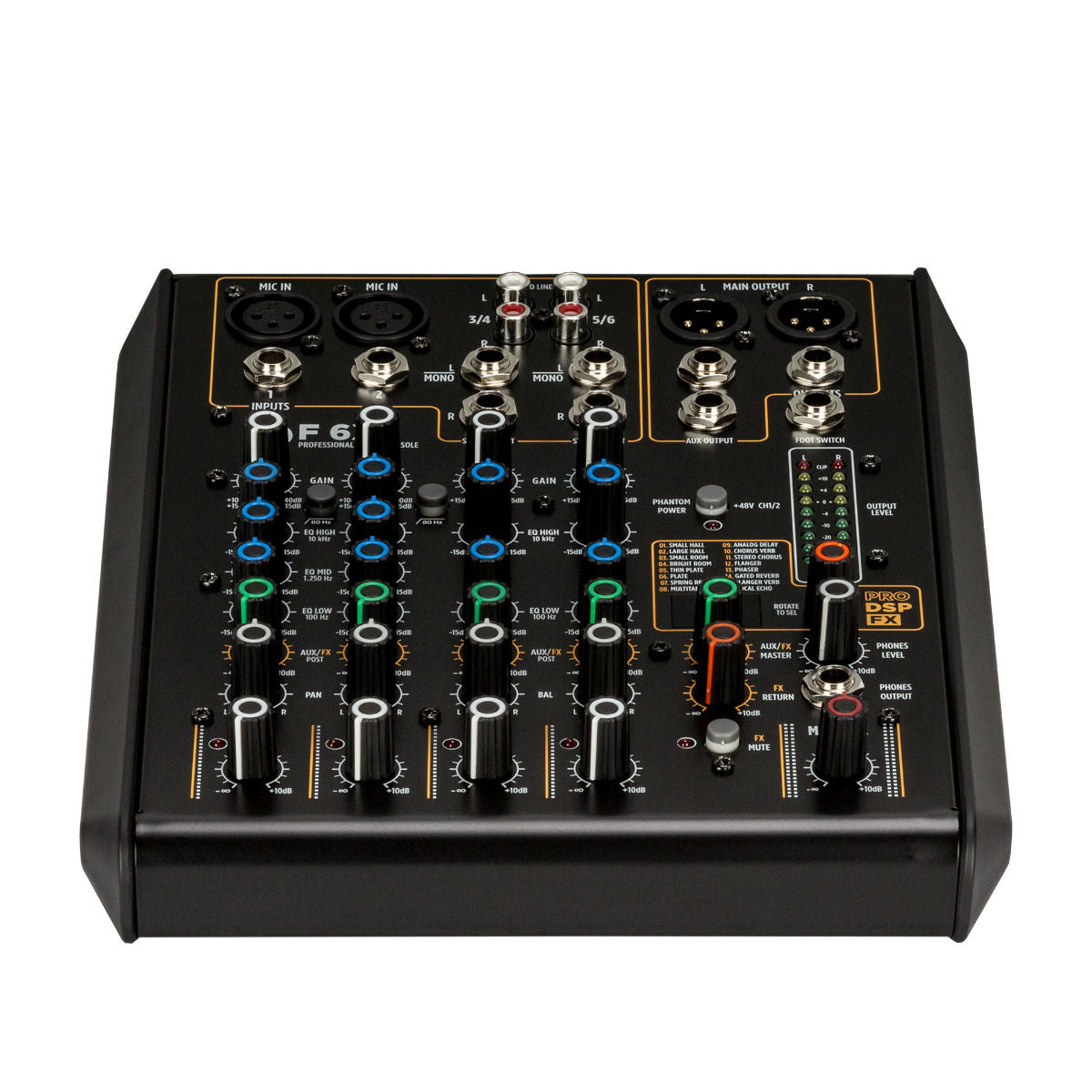

RCF F 6X 6-Channel Mixer With Multi-FX
The RCF F 6X 6-Channel Mixer is a high quality, yet affordable 6-channel mixer that's perfect for small recording sessions, gigs and home use. Building on the rich analog legacy found in RCF's E series, the F series offers high quality sound at an excellent price.
The RCF F 6X 6-Channel Mixer features six channels consisting of two mic inputs, two mono line inputs, and two stereo line inputs provide you with versatile connectivity for a wide range of uses. Powerful yet compact, and housed in a sturdy metal chassis, the F 6X mixer features a full balanced audio path from input to output. The F 6X also features sixteen professional DSP FX such as Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes. Combined with state-of-the-art EQ, giving you three-band control (High/Mid/Low) on each mono channel, and two-band (High/Low) control on each stereo channel, you have full control over the tone of your mix.
The F series include high quality preamplifiers with phantom power, inspired by the E-Series Mixers, offering high level sound and dynamics, and with its rugged metal chassis and external universal power supply, the RCF F 6X is a reliable choice.
Main features of the RCF F 6X 6-Channel Mixer include:
| Frequency Response: | 20Hz to 20kHz |
| THD+N: | <0.02 (20dB gain, 0dBu out) |
| Mic Inputs: | 2 |
| Mic Input Impedance: | 14 K Ohms |
| Mic Input Gain Range: | 0dB to -50dB |
| Low Cut: | 80Hz |
| Phantom Power: | Yes, +48V |
| Mono Line Inputs: | 2 |
| Mono Line Input Impedance: | 21 K Ohms |
| Mono Line Gain Selection: | 20dB to -30dB |
| Stereo Line Inputs: | 2 |
| Stereo Line Input Impedance: | 15 K Ohms |
| Stereo Line Gain Selection: | 20dB to -30dB |
| Main Mix Outputs: | 1 |
| FX Send Outputs: | 1 |
| AUX Outputs: | 1 |
| Headphone Outputs: | 1 |
| Main Out Level: | 28dBu |
| AUX Out Level: | 28dBu |
| Headphone Output Impedance: | 150 Ohms |
| Input Channels EQ: | High: +/-15dB at 10kHz, shelving Mid: +/-15dB at 1.25kHz, bell Low: +/-15dB at 100Hz, shelving |
| FX POST Auxiliary Sends: | 1 |
| Internal Send Effects: | 1 |
| Footswitchable: | Yes |
| Power Supply: | External |
| Voltage Requirements: | 100V-240V |
| Max. Power Consumption: | 12W |
| CE Marking: | Yes |
| Enclosure Material: | Metal |
| Colour: | Black |
| Dimensions: | 79mm x 210mm x 255mm / 3.11'' x 8.27'' x 10.04'' (H x W x D) |
| Weight: | 1.8kg / 3.97lbs |
- 2 Mic/Line inputs
- 2 Stereo line inputs
- One Aux/FX (post)
- PRO DSP FX onboard with 16 presets
